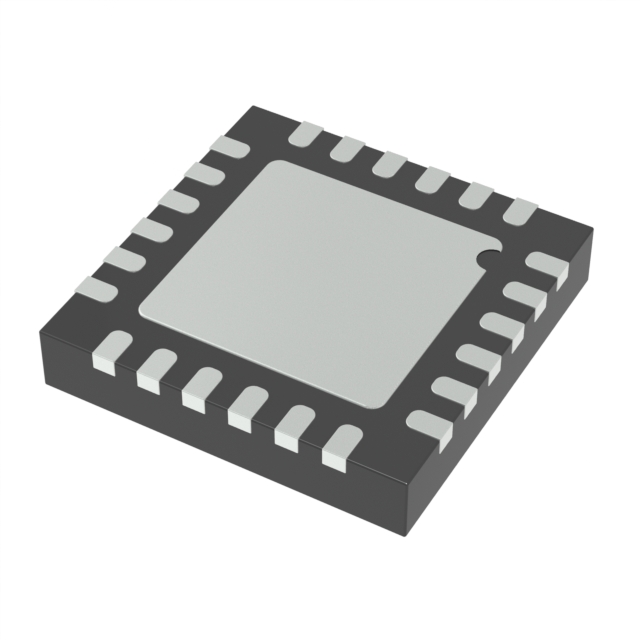

ADGS1409BCPZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
ADGS1409BCPZ
Product Number:
ADGS1409BCPZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
24-VFQFN Exposed Pad, CSP
Detailed Description:
IC MUX DUAL 4:1 4.7OHM 24LFCSP
Datasheet:
Descnt:
2 Circuit IC Switch 4:1 4.7Ohm 24-LFCSP (4x4)
In Stock
79
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tray
Part Status
Active
Switch Circuit
-
Multiplexer/Demultiplexer Circuit
4:1
Number of Circuits
2
On-State Resistance (Max)
4.7Ohm
Channel-to-Channel Matching (ΔRon)
200mOhm
Voltage - Supply, Single (V+)
12V
Voltage - Supply, Dual (V±)
±15V
Switch Time (Ton, Toff) (Max)
165ns, 155ns
-3db Bandwidth
115MHz
Charge Injection
50pC
Channel Capacitance (CS(off), CD(off))
14pF, 40pF
Current - Leakage (IS(off)) (Max)
200pA
Crosstalk
-70dB 1MHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
24-VFQFN Exposed Pad, CSP
Supplier Device Package
24-LFCSP (4x4)
Base Product Number
ADGS1409
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
-2735-ADGS1409BCPZ
Standard Package
1
