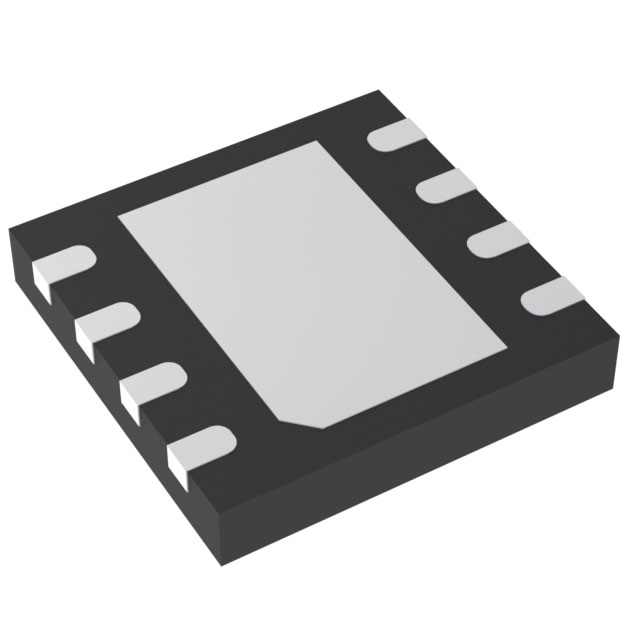

ADM7151ACPZ-02-R7 Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
ADM7151ACPZ-02-R7
Product Number:
ADM7151ACPZ-02-R7
MFR Standard Lead Time:
10 Weeks
Package/Case:
8-WFDFN Exposed Pad, CSP
Detailed Description:
IC REG LIN POS ADJ 800MA 8LFCSP
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA 8-LFCSP-WD (3x3)
In Stock
1052
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Analog Devices Inc.
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
1.5V
Voltage - Output (Max)
4V
Voltage Dropout (Max)
1.2V 800mA
Current - Output
800mA
Current - Quiescent (Iq)
7 mA
Current - Supply (Max)
12 mA
PSRR
94dB ~ 50dB (1kHz ~ 1MHz)
Control Features
Enable
Protection Features
Over Temperature, Short Circuit
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-WFDFN Exposed Pad, CSP
Supplier Device Package
8-LFCSP-WD (3x3)
Base Product Number
ADM7151
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,500
