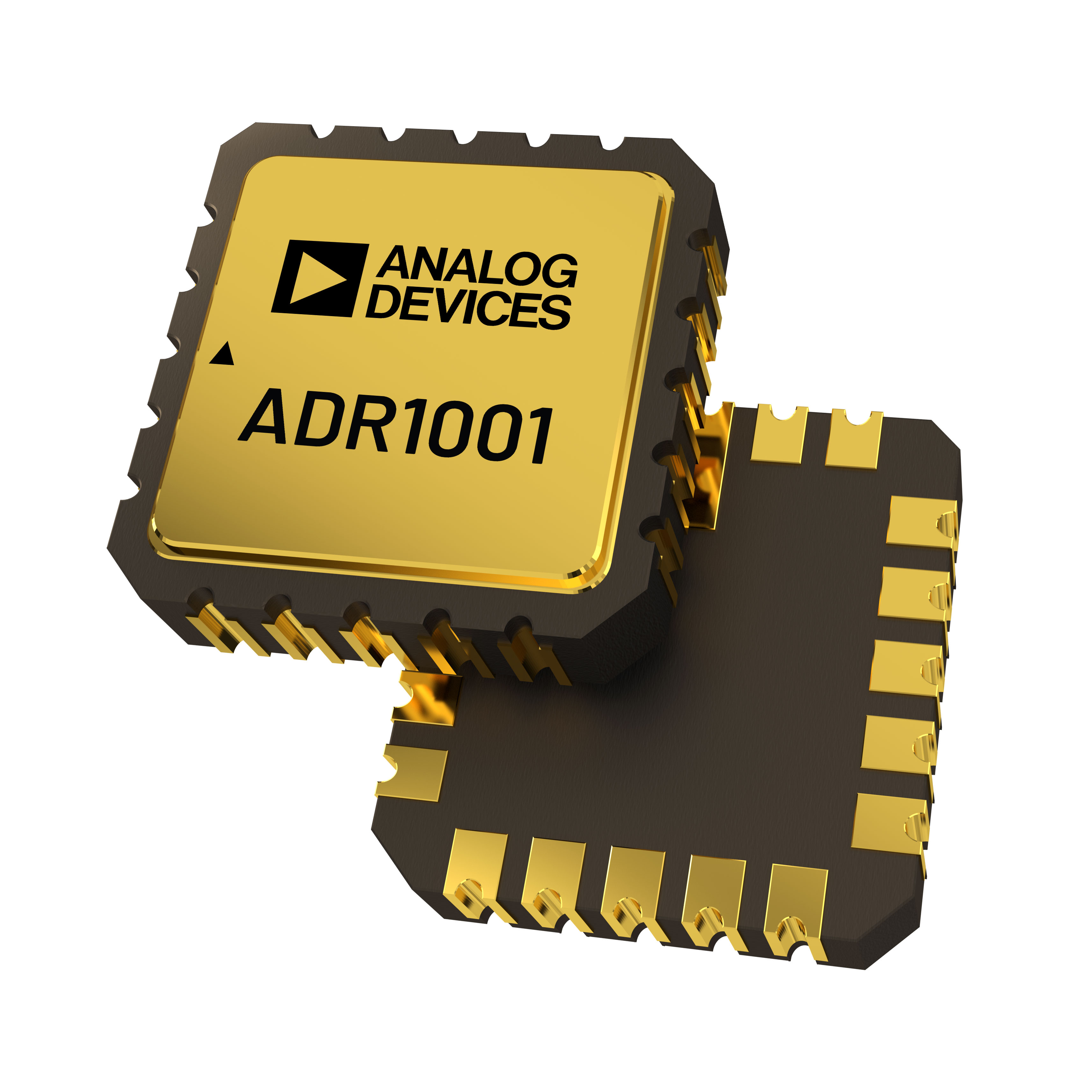

ADR1001AEZ Analog Devices Inc.
Favorite
Compare
Manufacturer:
Analog Devices Inc.
MFR Product Number:
ADR1001AEZ
Product Number:
ADR1001AEZ
MFR Standard Lead Time:
10 Weeks
Package/Case:
20-CLCC
Detailed Description:
HEATED BURIED ZENER PREC VOLTAGE
Datasheet:
Descnt:
Series, Buried Zener Voltage Reference IC Fixed 5V V ±0.25% 10 mA 20-CLCC (9x9)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Analog Devices Inc.
Series
-
Packaging
Tray
Part Status
Active
Reference Type
Series, Buried Zener
Output Type
Fixed
Voltage - Output (Min/Fixed)
5V
Current - Output
10 mA
Tolerance
±0.25%
Temperature Coefficient
36ppm/°C Typical
Noise - 0.1Hz to 10Hz
0.6µVp-p
Noise - 10Hz to 10kHz
-
Voltage - Input
9V ~ 36V
Current - Supply
2.5mA
Operating Temperature
-40°C ~ 130°C
Mounting Type
Surface Mount
Package / Case
20-CLCC
Supplier Device Package
20-CLCC (9x9)
Base Product Number
ADR1001
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
505-ADR1001AEZ
Standard Package
260
