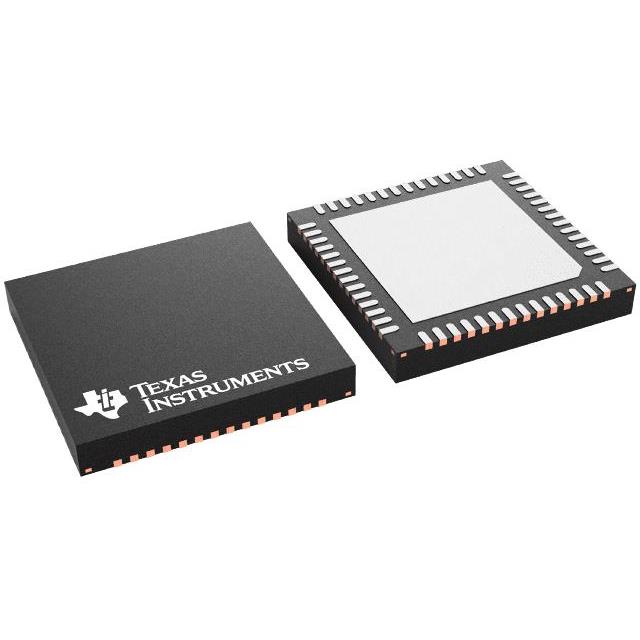

ADS9817RSHR Texas Instruments
Favorite
Compare
Manufacturer:
Texas Instruments
MFR Product Number:
ADS9817RSHR
Product Number:
ADS9817RSHR
MFR Standard Lead Time:
18 Weeks
Package/Case:
56-VFQFN Exposed Pad
Detailed Description:
IC
Datasheet:
Descnt:
18 Bit Analog to Digital Converter 8, 16 Input 8 SAR 56-VQFN (7x7)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Part Status
Active
Number of Bits
18
Sampling Rate (Per Second)
2M
Number of Inputs
8, 16
Input Type
Differential, Single Ended
Data Interface
Serial, SPI
Configuration
MUX-PGA-ADC
Ratio - S/H:ADC
0:8
Number of A/D Converters
8
Architecture
SAR
Reference Type
External, Internal
Voltage - Supply, Analog
1.75V ~ 1.85V, 4.75V ~ 5.25V
Voltage - Supply, Digital
1.15V ~ 1.85V
Features
Over-Voltage Protection, PGA
Operating Temperature
-40°C ~ 125°C
Package / Case
56-VFQFN Exposed Pad
Supplier Device Package
56-VQFN (7x7)
Mounting Type
Surface Mount
Grade
-
Qualification
-
-
Documents & Media
Environmental & Export Classifications
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
296-ADS9817RSHRTR
Standard Package
2,500
