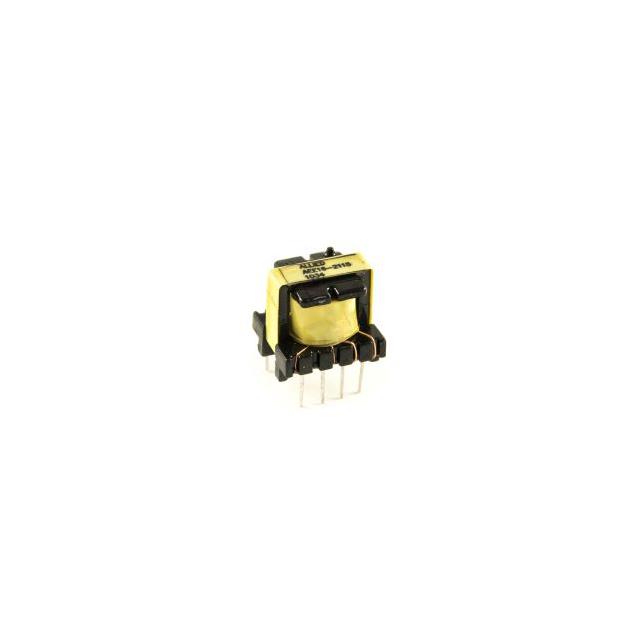

AEE16-2115 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEE16-2115
Product Number:
AEE16-2115
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBACK 1MH TH
Datasheet:
Descnt:
Flyback Converters For SMPS Transformer 3000Vrms Isolation 100kHz Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Type
-
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
85 ~ 256V
Voltage - Auxiliary
15V 60mA
Voltage - Isolation
3000Vrms
Inductance Frequency
1mH
Frequency
100kHz
Operating Temperature
-40°C ~ 130°C
Mounting Type
Through Hole
Size / Dimension
0.716" L x 0.630" W (18.19mm x 16.00mm)
Height - Seated (Max)
0.708" (17.98mm)
Footprint
0.716" L x 0.630" W (18.19mm x 16.00mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AEE16-2115
Standard Package
1
