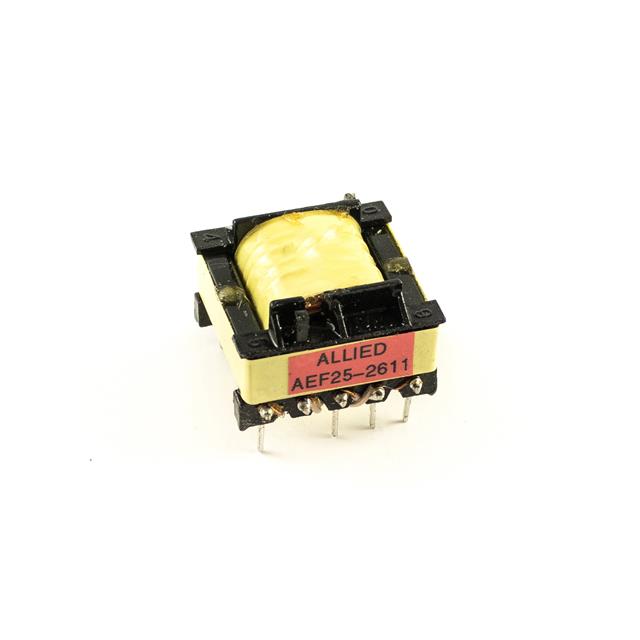

AEF25-2611 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEF25-2611
Product Number:
AEF25-2611
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBK CONFG DC/DC 9.85MH TH
Datasheet:
Descnt:
Flyback Converters For Configurable (For DC/DC) SMPS Transformer 3000V Isolation Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Box
Part Status
Active
Type
Configurable (For DC/DC)
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
-
Voltage - Auxiliary
-
Voltage - Isolation
3000V
Inductance Frequency
9.85mH
Frequency
-
Operating Temperature
-40°C ~ 130°C
Mounting Type
Through Hole
Size / Dimension
1.181" L x 1.102" W (30.00mm x 28.00mm)
Height - Seated (Max)
0.827" (21.00mm)
Footprint
1.142" L x 1.102" W (29.00mm x 28.00mm)
Style
Laminated Core
-
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AEF25-2611
Standard Package
2
