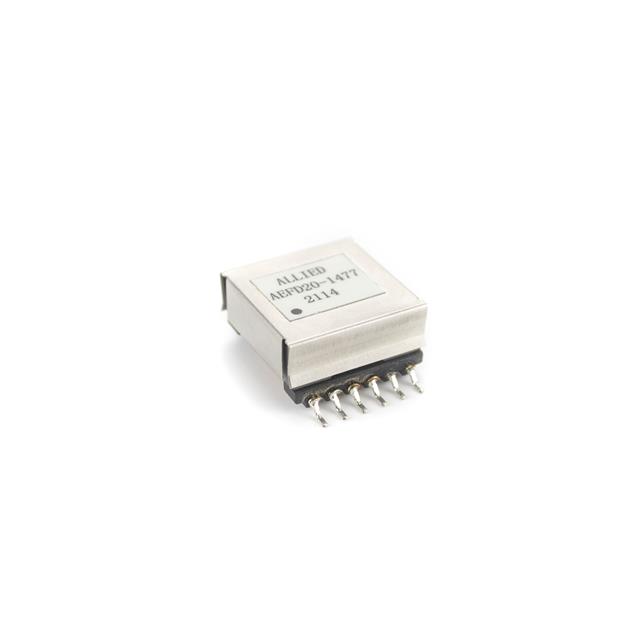

AEFD20-1477 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEFD20-1477
Product Number:
AEFD20-1477
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBCK DC/DC CONV 38.3UH SM
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1800VAC Isolation 200kHz Surface Mount
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
36 ~ 72V
Voltage - Auxiliary
13V 20mA
Voltage - Isolation
1800VAC
Inductance Frequency
38.3µH
Frequency
200kHz
Operating Temperature
-20°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
0.866" L x 0.866" W (22.00mm x 22.00mm)
Height - Seated (Max)
0.457" (11.60mm)
Footprint
1.161" L x 0.866" W (29.50mm x 22.00mm)
Style
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3475-AEFD20-1477
Standard Package
1
