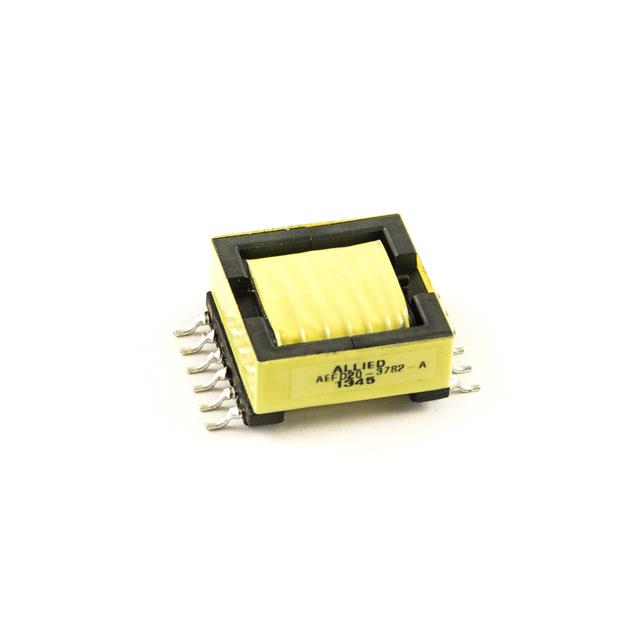

AEFD20-3782-A Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEFD20-3782-A
Product Number:
AEFD20-3782-A
MFR Standard Lead Time:
Package/Case:
Detailed Description:
XFMR FLYBCK AC/DC CONV 42.5UH SM
Datasheet:
Descnt:
Flyback Converters For For AC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Type
For AC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
20 ~ 60V
Voltage - Auxiliary
12V 50mA
Voltage - Isolation
1500Vrms
Inductance Frequency
42.5µH
Frequency
250kHz
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Size / Dimension
0.866" L x 0.866" W (22.00mm x 22.00mm)
Height - Seated (Max)
0.453" (11.50mm)
Footprint
1.128" L x 0.866" W (28.65mm x 22.00mm)
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AEFD20-3782-A
Standard Package
2
