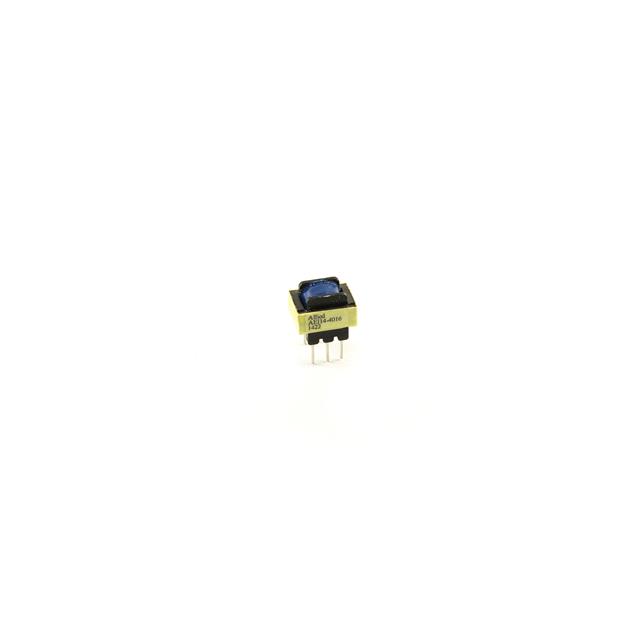

AEI14-4016 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEI14-4016
Product Number:
AEI14-4016
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 1.2K / 8 TH
Datasheet:
Descnt:
1.2k Impedance Primary Ohms 8 Impedance Secondary Ohms 1:13.27 Audio Transformer Through Hole
In Stock
3
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Bulk
Part Status
Active
Turns Ratio - Primary:Secondary
1:13.27
Impedance - Primary (Ohms)
1.2k
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
80Ohm
DC Resistance (DCR) - Secondary
1Ohm
Transformer Type
-
Frequency Range
-
Frequency Response
-
Voltage - Isolation
-
Insertion Loss
-
Return Loss
-
Power Level
75mW
Operating Temperature
-20°C ~ 80°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.591" L x 0.472" W (15.01mm x 11.99mm)
Height - Seated (Max)
0.453" (11.51mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
Vendor Undefined
ECCN
EAR99
HTSUS
8504.50.4000
-
Additional Resources
Other Names
3475-AEI14-4016
Standard Package
1
