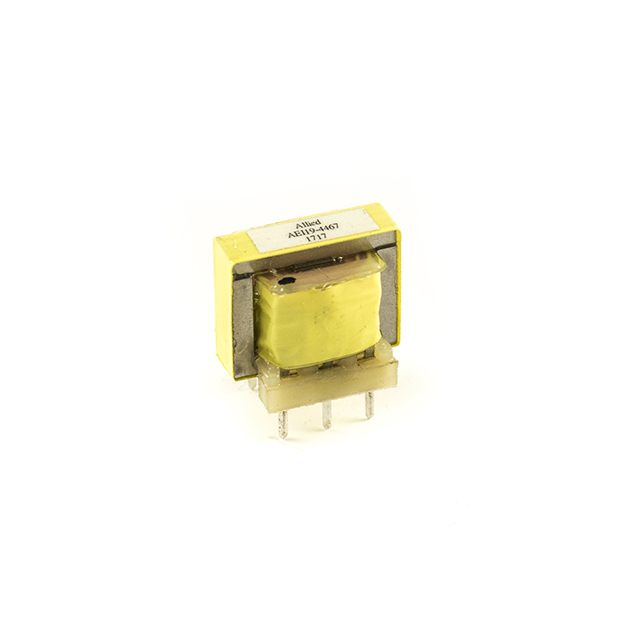

AEI19-4467 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEI19-4467
Product Number:
AEI19-4467
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600CT / 600CT TH
Datasheet:
Descnt:
600CT Impedance Primary Ohms 600CT Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole
In Stock
4
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
600CT
Impedance - Secondary (Ohms)
600CT
DC Resistance (DCR) - Primary
44Ohm
DC Resistance (DCR) - Secondary
58Ohm
Transformer Type
Impedance Matching
Frequency Range
200Hz ~ 15kHz
Frequency Response
±2dB
Voltage - Isolation
1500Vrms 1 Second
Insertion Loss
1.5dB 1kHz Max
Return Loss
-
Power Level
-
Operating Temperature
0°C ~ 105°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max)
0.740" (18.80mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AEI19-4467
Standard Package
1
