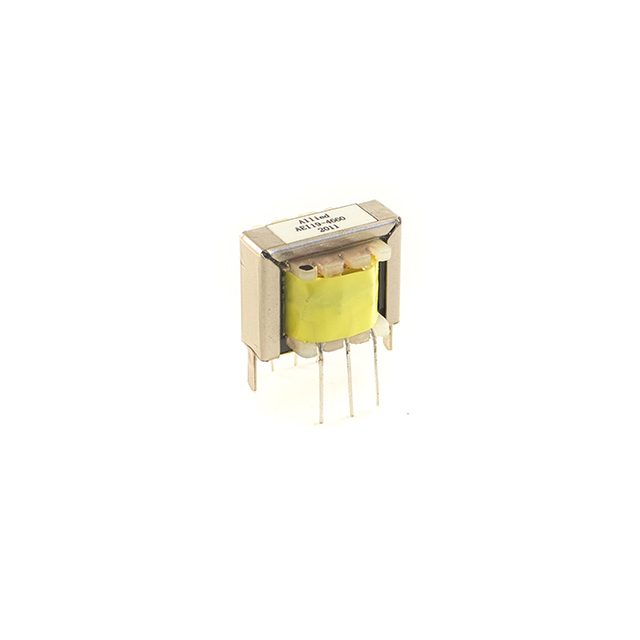

AEI19-4660 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AEI19-4660
Product Number:
AEI19-4660
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 10K / 10K TH
Datasheet:
Descnt:
10k Impedance Primary Ohms 10k Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.4kHz Through Hole
In Stock
2
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
10k
DC Resistance (DCR) - Primary
550Ohm
DC Resistance (DCR) - Secondary
500Ohm
Transformer Type
-
Frequency Range
300Hz ~ 3.4kHz
Frequency Response
±0.3dB
Voltage - Isolation
100VAC
Insertion Loss
-
Return Loss
-
Power Level
-
Operating Temperature
-20°C ~ 80°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.866" L x 0.630" W (22.00mm x 16.00mm)
Height - Seated (Max)
0.669" (16.99mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AEI19-4660
Standard Package
1
