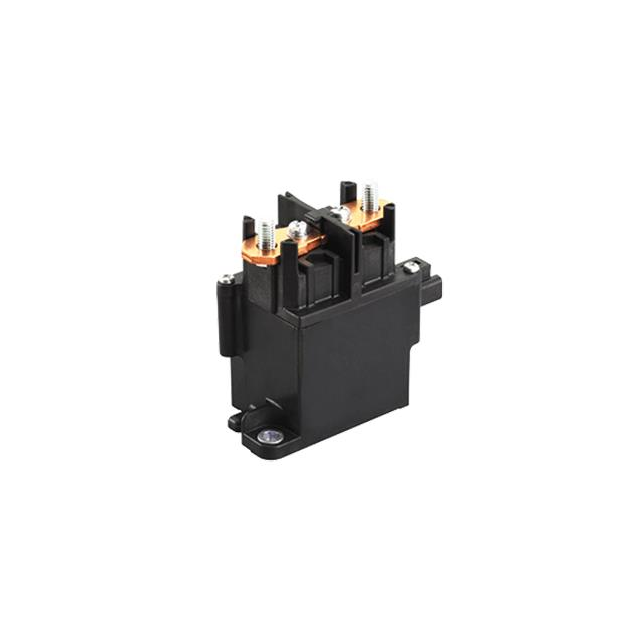

AEV14024 Panasonic Electric Works
Favorite
Compare
Manufacturer:
Panasonic Electric Works
MFR Product Number:
AEV14024
Product Number:
AEV14024
MFR Standard Lead Time:
16 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPST 120A 24V
Datasheet:
Descnt:
In Stock
22
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electric Works
Series
EV
Packaging
Box
Part Status
Active
Coil Type
Non Latching
Coil Current
176 mA
Coil Voltage
24VDC
Contact Form
SPST-NO (1 Form A)
Contact Rating (Current)
120 A
Switching Voltage
450VDC - Nom
Must Operate Voltage
18 VDC
Must Release Voltage
2 VDC
Operate Time
50 ms
Release Time
30 ms
Features
-
Mounting Type
Chassis Mount
Termination Style
Screw Terminal
Operating Temperature
-40°C ~ 80°C
Contact Material
Copper Alloy
Coil Power
4.2W
Coil Resistance
136 Ohms
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.41.0050
Additional Resources
Other Names
255-AEV14024
Standard Package
1
