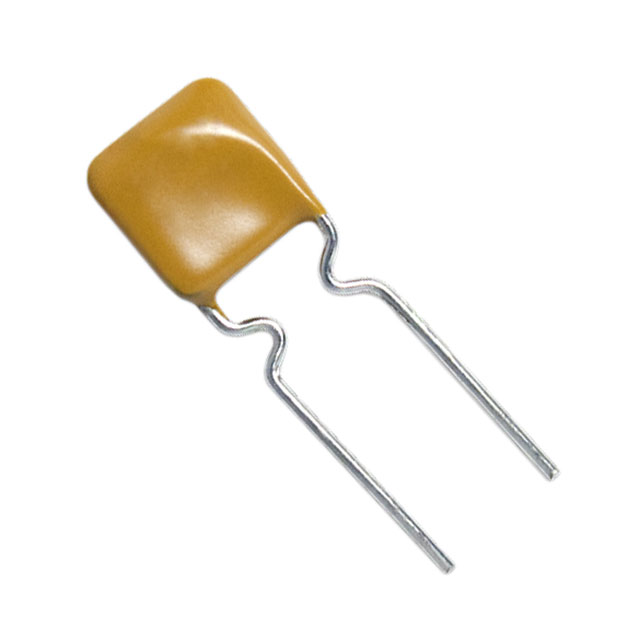

AHEF070 Littelfuse Inc.
Favorite
Compare
Manufacturer:
Littelfuse Inc.
MFR Product Number:
AHEF070
Product Number:
AHEF070
MFR Standard Lead Time:
15 Weeks
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 32V 700MA RADIAL
Datasheet:
Descnt:
Polymeric PTC Resettable Fuse 32V 700 mA Ih Through Hole Radial, Disc
In Stock
534
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Littelfuse Inc.
Series
PolySwitch®, AHEF
Packaging
Bag
Part Status
Active
Type
Polymeric
Voltage - Max
32V
Current - Hold (Ih) (Max)
700 mA
Current - Trip (It)
1.4 A
Current - Max
100 A
Time to Trip
3.2 s
Resistance - Initial (Ri) (Min)
230 mOhms
Resistance - Post Trip (R1) (Max)
800 mOhms
Operating Temperature
-40°C ~ 125°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.272" L x 0.118" W (6.90mm x 3.00mm)
Height - Seated (Max)
0.425" (10.80mm)
Thickness (Max)
-
Lead Spacing
0.118" (3.00mm)
Approval Agency
-
-
Documents & Media
Datasheets
AHEF Series Datasheet
AHEF070 Spec
Video File
Building Automation – Protect/Sense/Control
TE Connectivity PolySwitch Devices -- Another Geek Moment
HTML Datasheet
PolySwitch, Automotive Catalog
AHEF Series Datasheet
AHEF070 Spec
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
California Prop 65
<img class="warning_image" src="//media.digikey.com/Icons/warning%20sign.jpg"/> Warning Information
Additional Resources
Other Names
Standard Package
500
