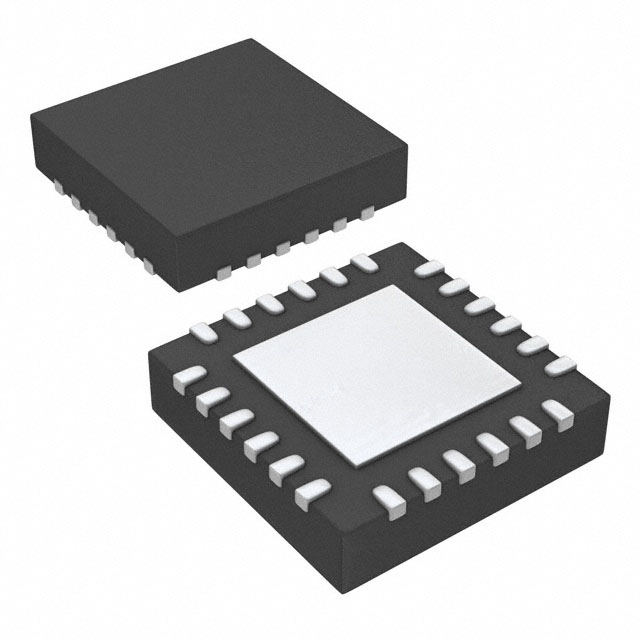

ALED7707 STMicroelectronics
Favorite
Compare
Manufacturer:
STMicroelectronics
MFR Product Number:
ALED7707
Product Number:
ALED7707
MFR Standard Lead Time:
14 Weeks
Package/Case:
24-VQFN Exposed Pad
Detailed Description:
IC LED DRVR RGLTR PWM 85MA 24QFN
Datasheet:
Descnt:
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) PWM Dimming 85mA 24-QFN (5x5)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
STMicroelectronics
Series
-
Packaging
Tray
Part Status
Active
Type
DC DC Regulator
Topology
Step-Up (Boost)
Internal Switch(s)
Yes
Number of Outputs
6
Voltage - Supply (Min)
4.5V
Voltage - Supply (Max)
36V
Voltage - Output
36V
Current - Output / Channel
85mA
Frequency
250kHz ~ 1MHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 150°C (TJ)
Grade
Automotive
Qualification
AEC-Q100
Mounting Type
Surface Mount
Package / Case
24-VQFN Exposed Pad
Supplier Device Package
24-QFN (5x5)
Base Product Number
ALED7707
Documents & Media
Datasheets
Reference Design Library
STEVAL-ILL067V1: 6-Ch 70mA 36V (Max), 6 ~ 32V in, Boost
STEVAL-ILL021V1: 85mA x6 36V Max, 4.5 ~ 36V
EVALED7707: 6x 85mA 36V Max, 4.5 ~ 36Vin
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
2,940
-
