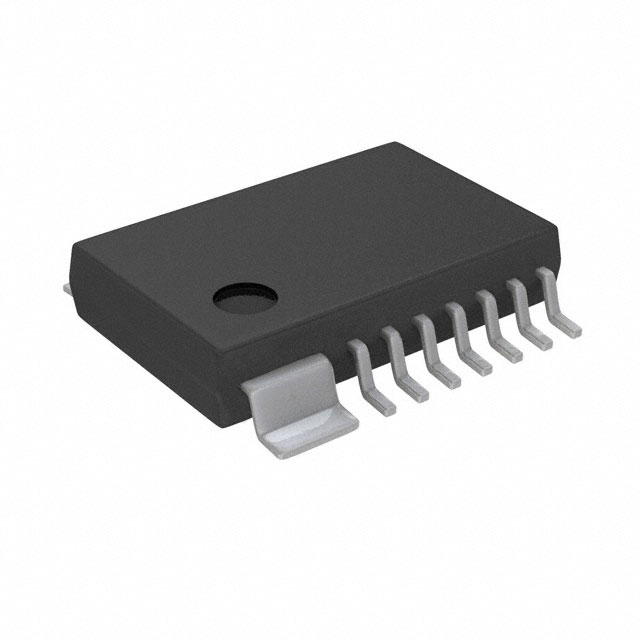

AM4961GHTR-G1 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AM4961GHTR-G1
Product Number:
AM4961GHTR-G1
MFR Standard Lead Time:
8 Weeks
Package/Case:
14-TSSOP (0.173\, 4.40mm Width) + 2 Heat Tabs
Detailed Description:
IC MOTOR DRVR 3.5V-16V 14HTSSOP
Datasheet:
Descnt:
Motor Driver Bipolar PWM 14-HTSSOP
In Stock
4847
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Motor Type - Stepper
-
Motor Type - AC, DC
Brushless DC (BLDC)
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (2)
Interface
PWM
Technology
Bipolar
Step Resolution
-
Applications
General Purpose
Current - Output
1A
Voltage - Supply
3.5V ~ 16V
Voltage - Load
3.5V ~ 16V
Operating Temperature
-30°C ~ 90°C (TA)
Mounting Type
Surface Mount
Package / Case
14-TSSOP (0.173", 4.40mm Width) + 2 Heat Tabs
Supplier Device Package
14-HTSSOP
Base Product Number
AM4961
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
