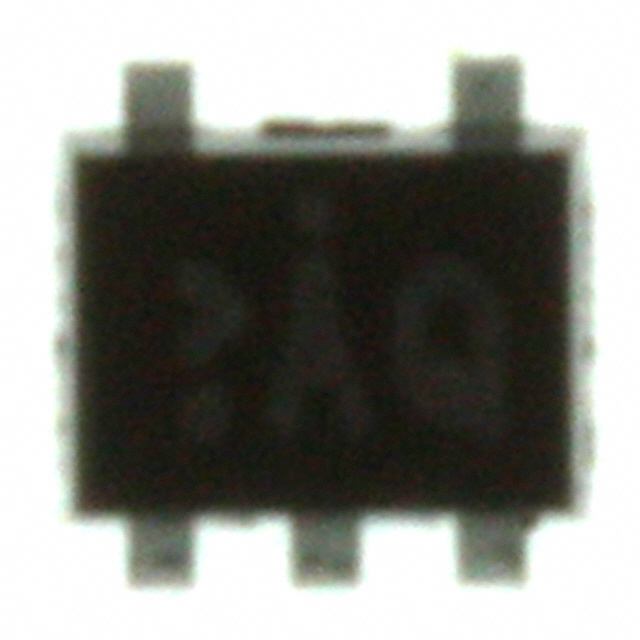

AN1433SSMTXL Panasonic Electronic Components
Favorite
Compare
Manufacturer:
Panasonic Electronic Components
MFR Product Number:
AN1433SSMTXL
Product Number:
AN1433SSMTXL
MFR Standard Lead Time:
Package/Case:
SOT-665
Detailed Description:
IC VREF SHUNT ADJ 1% SSMINI-5D
Datasheet:
Descnt:
Shunt Voltage Reference IC Adjustable 1.25V 14 VV ±1% 20 mA SSMini-5DA
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electronic Components
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Reference Type
Shunt
Output Type
Adjustable
Voltage - Output (Min/Fixed)
1.25V
Voltage - Output (Max)
14 V
Current - Output
20 mA
Tolerance
±1%
Temperature Coefficient
-
Noise - 0.1Hz to 10Hz
-
Noise - 10Hz to 10kHz
-
Voltage - Input
-
Current - Supply
-
Current - Cathode
200 µA
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
SOT-665
Supplier Device Package
SSMini-5DA
Base Product Number
AN1433
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
3,000
