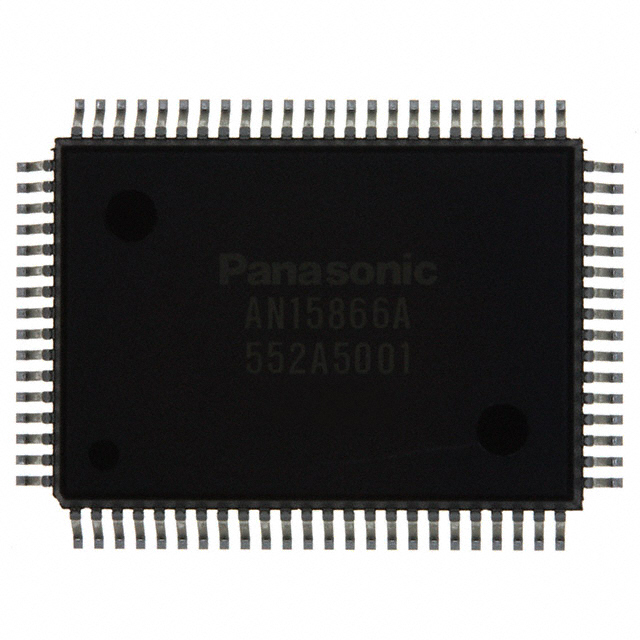

AN15866A-VT Panasonic Electronic Components
Favorite
Compare
Manufacturer:
Panasonic Electronic Components
MFR Product Number:
AN15866A-VT
Product Number:
AN15866A-VT
MFR Standard Lead Time:
Package/Case:
80-QFP
Detailed Description:
IC VIDEO SWITCH 17IN/5OUT QFH-80
Datasheet:
Descnt:
Video Switch IC Channel 80-QFH (14x20)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Panasonic Electronic Components
Series
-
Packaging
Tray
Part Status
Obsolete
Applications
Video
Multiplexer/Demultiplexer Circuit
-
Switch Circuit
-
On-State Resistance (Max)
-
Voltage - Supply, Single (V+)
8.5V ~ 9.5V
Voltage - Supply, Dual (V±)
-
-3db Bandwidth
-
Features
-
Operating Temperature
-20°C ~ 75°C (TA)
Mounting Type
Surface Mount
Package / Case
80-QFP
Supplier Device Package
80-QFH (14x20)
Base Product Number
AN15866A
-
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
50
-
