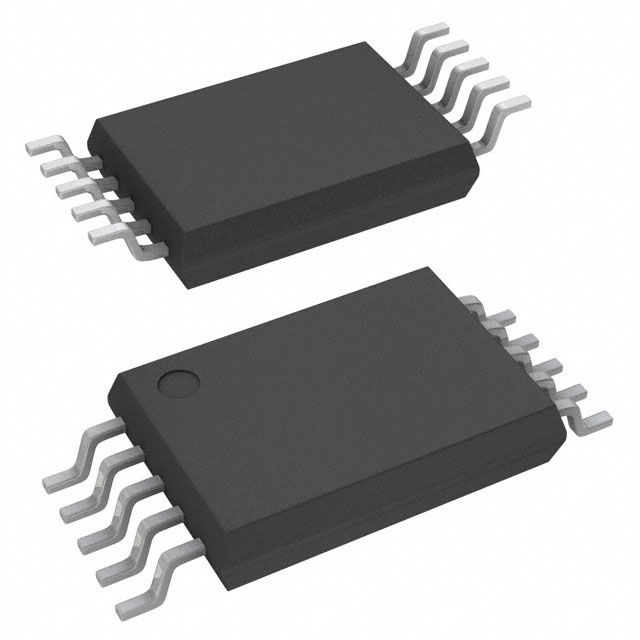

AN8013SH-E1 Panasonic Electronic Components
Favorite
Compare
Manufacturer:
Panasonic Electronic Components
MFR Product Number:
AN8013SH-E1
Product Number:
AN8013SH-E1
MFR Standard Lead Time:
Package/Case:
10-FSOP (0.169\, 4.30mm Width)
Detailed Description:
IC REG BUCK BST ADJ 50MA 10SSOP
Datasheet:
Descnt:
Buck, Boost Switching Regulator IC Positive Adjustable 3.6V 1 Output 50mA 10-FSOP (0.169", 4.30mm Width)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Panasonic Electronic Components
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Function
Step-Up, Step-Down
Output Configuration
Positive
Topology
Buck, Boost
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.6V
Voltage - Input (Max)
34V
Voltage - Output (Min/Fixed)
3.6V
Voltage - Output (Max)
34V
Current - Output
50mA
Frequency - Switching
20kHz ~ 500kHz
Synchronous Rectifier
No
Operating Temperature
-30°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
10-FSOP (0.169", 4.30mm Width)
Supplier Device Package
10-SSOP
Base Product Number
AN8013SH
-
Environmental & Export Classifications
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Resources
Other Names
Standard Package
2,000
