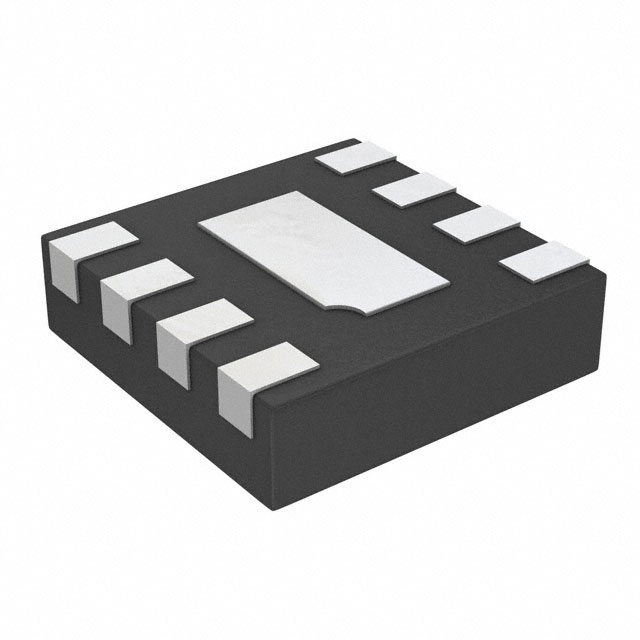

AP22850SH8-7 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP22850SH8-7
Product Number:
AP22850SH8-7
MFR Standard Lead Time:
Package/Case:
8-VFDFN Exposed Pad
Detailed Description:
IC PWR SWITCH P-CHAN 1:1 8WDFN
Datasheet:
Descnt:
Power Switch/Driver 1:1 P-Channel 8A 8-WDFN (2x2)
In Stock
6000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Last Time Buy
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
P-Channel
Interface
On/Off
Voltage - Load
4.5V ~ 11V
Voltage - Supply (Vcc/Vdd)
2.5V ~ 5.5V
Current - Output (Max)
8A
Rds On (Typ)
21mOhm
Input Type
-
Features
Load Discharge, Power Good, Slew Rate Controlled
Fault Protection
-
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
8-WDFN (2x2)
Package / Case
8-VFDFN Exposed Pad
Base Product Number
AP22850
Documents & Media
Datasheets
AP22850 Datasheet
AP22850 Announcement
Environmental Information
HTML Datasheet
AP22850 Datasheet
AP22850 Announcement
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
