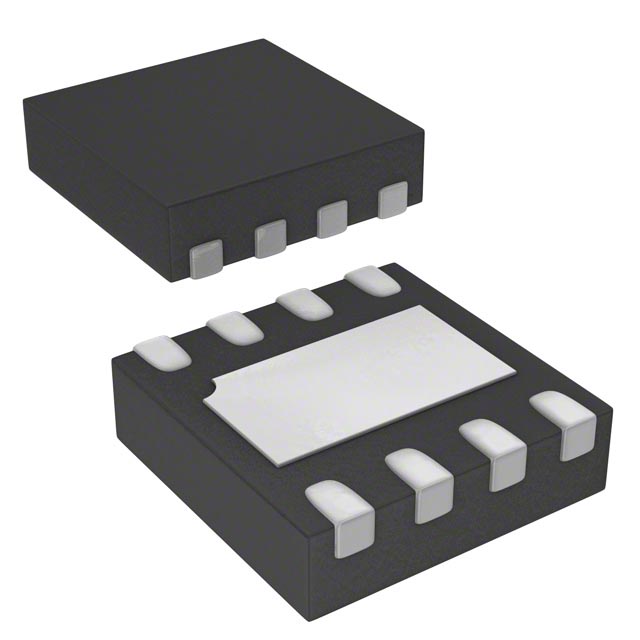

AP2318DN-ADJTRG1 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP2318DN-ADJTRG1
Product Number:
AP2318DN-ADJTRG1
MFR Standard Lead Time:
Package/Case:
8-WDFN Exposed Pad
Detailed Description:
IC REG LINEAR POS ADJ 600MA 8DFN
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 1 Output 600mA 8-DFN (3x3)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
12V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
11.65V
Voltage Dropout (Max)
0.35V 600mA (Typ)
Current - Output
600mA
Current - Quiescent (Iq)
250 µA
PSRR
-
Control Features
Enable
Protection Features
Over Current, Over Temperature, Over Voltage
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-WDFN Exposed Pad
Supplier Device Package
8-DFN (3x3)
Base Product Number
AP2318
-
Documents & Media
Video File
Diodes Low Dropout Regulators | Digi-Key Daily
What is a Voltage Regulator Another Teaching Moment | Digi-Key Electronics
Environmental Information
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
5,000
