AP2553AW6-7 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP2553AW6-7
MFR Standard Lead Time:
Package/Case:

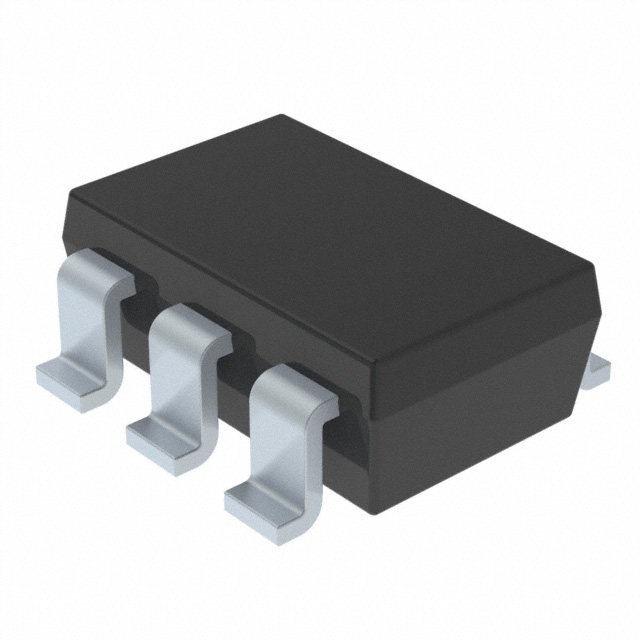

SOT-23-6
Detailed Description:
IC PWR SWITCH P-CHAN 1:1 SOT26
Datasheet:
Descnt:
Power Switch/Driver 1:1 P-Channel 2.1A SOT-26
In Stock
65317
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Product Attributes
Mfr
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Not For New Designs
Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
P-Channel
Interface
On/Off
Voltage - Load
2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
2.1A
Rds On (Typ)
70mOhm
Input Type
Non-Inverting
Features
Load Discharge, Status Flag
Fault Protection
Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
SOT-26
Package / Case
SOT-23-6
Base Product Number
AP2553
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
