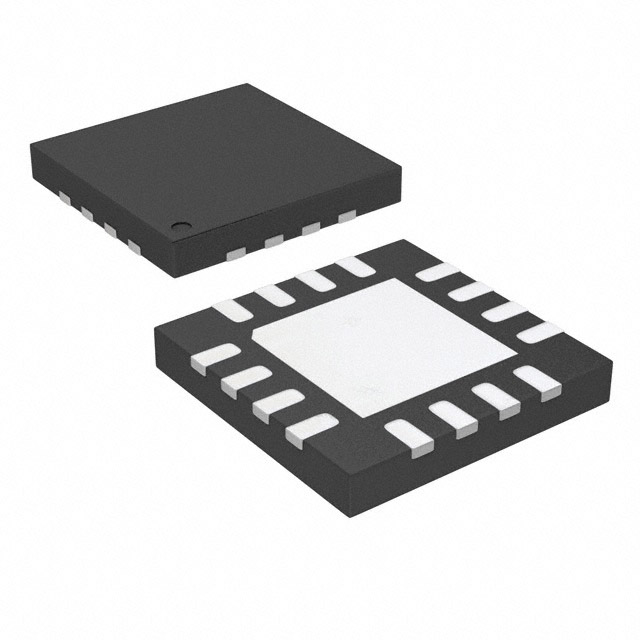

AP3156FVG-7 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP3156FVG-7
Product Number:
AP3156FVG-7
MFR Standard Lead Time:
8 Weeks
Package/Case:
16-WQFN Exposed Pad
Detailed Description:
IC LED DRIVER RGLTR 20MA 16QFN
Datasheet:
Descnt:
LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) Dimming 20mA QFN4040-16
In Stock
11010
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
DC DC Regulator
Topology
Switched Capacitor (Charge Pump)
Internal Switch(s)
Yes
Number of Outputs
6
Voltage - Supply (Min)
2.7V
Voltage - Supply (Max)
5.5V
Voltage - Output
-
Current - Output / Channel
20mA
Frequency
500kHz ~ 2MHz
Dimming
-
Applications
Backlight, Camera Flash
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
16-WQFN Exposed Pad
Supplier Device Package
QFN4040-16
Base Product Number
AP3156
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
1,500
