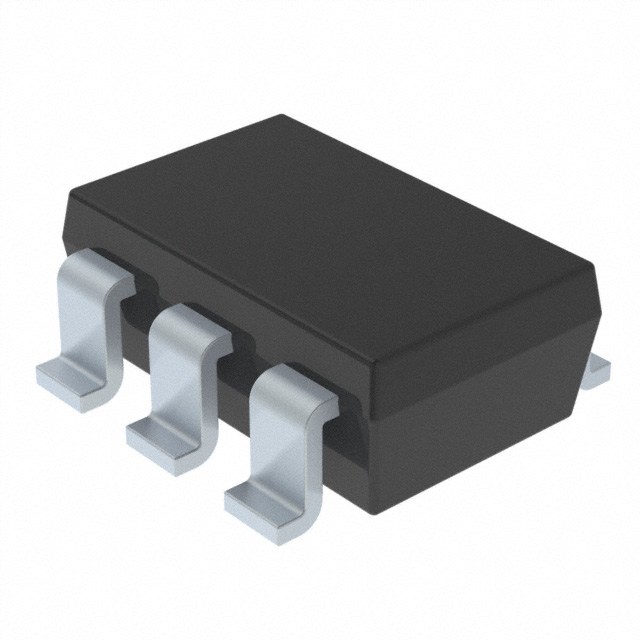

AP3304AW6-7 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP3304AW6-7
Product Number:
AP3304AW6-7
MFR Standard Lead Time:
8 Weeks
Package/Case:
SOT-23-6
Detailed Description:
ACDCPWMSWITCHERSOT26T&R3K
Datasheet:
Descnt:
Converter Offline Flyback Topology 100kHz SOT-26 (Type A1)
In Stock
23327
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
-
Topology
Flyback
Voltage - Start Up
15.8 V
Voltage - Supply (Vcc/Vdd)
10V ~ 50V
Duty Cycle
-
Frequency - Switching
100kHz
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features
Soft Start
Operating Temperature
-40°C ~ 85°C (TA)
Package / Case
SOT-23-6
Supplier Device Package
SOT-26 (Type A1)
Mounting Type
Surface Mount
Base Product Number
AP3304
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
3,000
