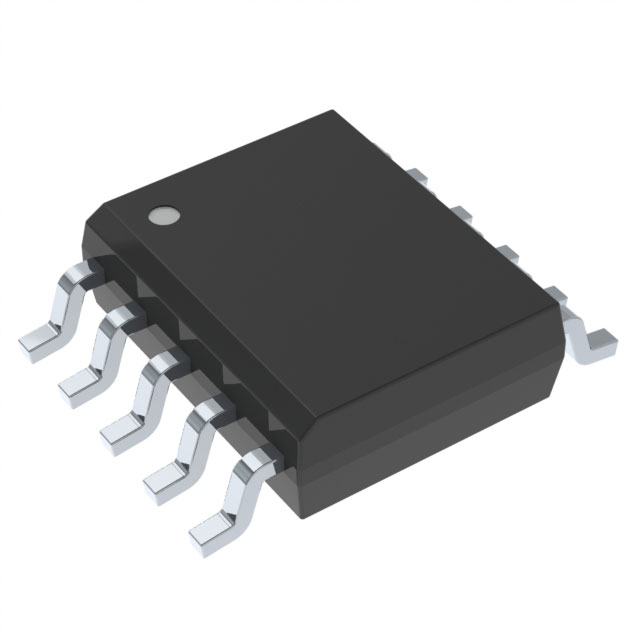

AP3306S10-13 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP3306S10-13
Product Number:
AP3306S10-13
MFR Standard Lead Time:
36 Weeks
Package/Case:
10-SOP (0.154\, 3.90mm Width)
Detailed Description:
ACDC PWM SWITCHER SO-10 T&R 2.5K
Datasheet:
Descnt:
Converter Offline Flyback Topology 130kHz, 200kHz 10-SO Type A1
In Stock
2174
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Isolation
Isolated
Internal Switch(s)
No
Voltage - Breakdown
700V
Topology
Flyback
Voltage - Start Up
15.8 V
Voltage - Supply (Vcc/Vdd)
10V ~ 50V
Duty Cycle
-
Frequency - Switching
130kHz, 200kHz
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features
Soft Start
Operating Temperature
-40°C ~ 85°C (TA)
Grade
Automotive
Qualification
AEC-Q100
Package / Case
10-SOP (0.154", 3.90mm Width)
Supplier Device Package
10-SO Type A1
Mounting Type
Surface Mount
Base Product Number
AP3306
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,500
