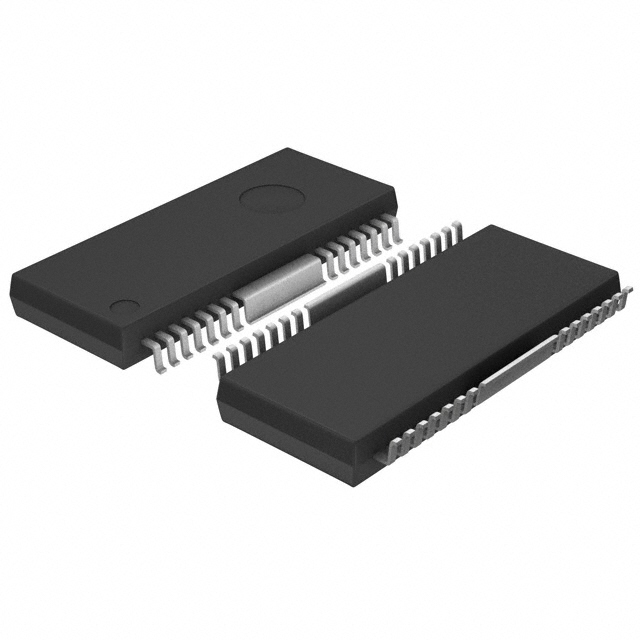

AP3612M28TR-G1 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP3612M28TR-G1
Product Number:
AP3612M28TR-G1
MFR Standard Lead Time:
Package/Case:
28-BSOP (0.295\, 7.50mm Width) + 2 Heat Tabs
Detailed Description:
IC LED DRVR CTRL PWM 75MA 28HSOP
Datasheet:
Descnt:
LED Driver IC 12 Output DC DC Controller Step-Up (Boost) PWM Dimming 75mA 28-HSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Type
DC DC Controller
Topology
Step-Up (Boost)
Internal Switch(s)
No
Number of Outputs
12
Voltage - Supply (Min)
4.5V
Voltage - Supply (Max)
33V
Voltage - Output
-
Current - Output / Channel
75mA
Frequency
100kHz ~ 1MHz
Dimming
PWM
Applications
Backlight
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
28-BSOP (0.295", 7.50mm Width) + 2 Heat Tabs
Supplier Device Package
28-HSOP
Base Product Number
AP3612
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
1,000
-
