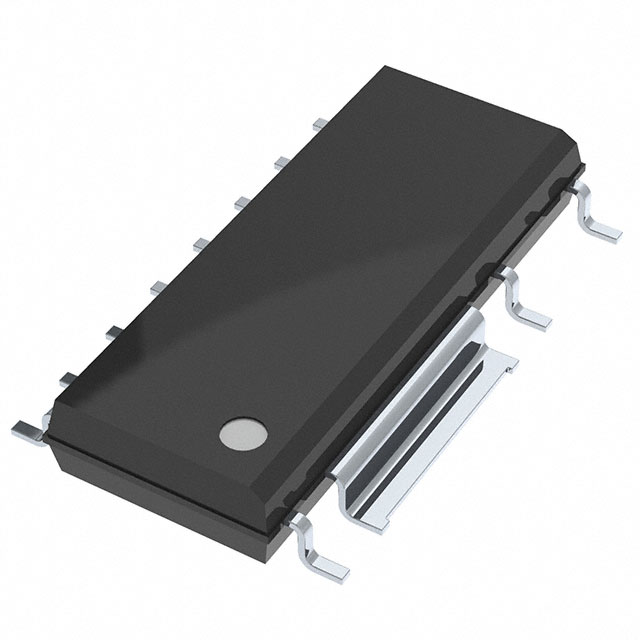

AP39303S16-13 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP39303S16-13
Product Number:
AP39303S16-13
MFR Standard Lead Time:
Package/Case:
16-SOIC (0.154\, 3.90mm Width), 12 Leads, Fused Leads
Detailed Description:
IC OFFLINE SWITCH FLYBACK 16HSOP
Datasheet:
Descnt:
Converter Offline Flyback Topology 24kHz ~ 120kHz 16-HSOP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Breakdown
700V
Topology
Flyback
Voltage - Start Up
15.8 V
Voltage - Supply (Vcc/Vdd)
10V ~ 28V
Duty Cycle
-
Frequency - Switching
24kHz ~ 120kHz
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features
-
Operating Temperature
-40°C ~ 85°C (TA)
Package / Case
16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads
Supplier Device Package
16-HSOP
Mounting Type
Surface Mount
Base Product Number
AP39303
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
