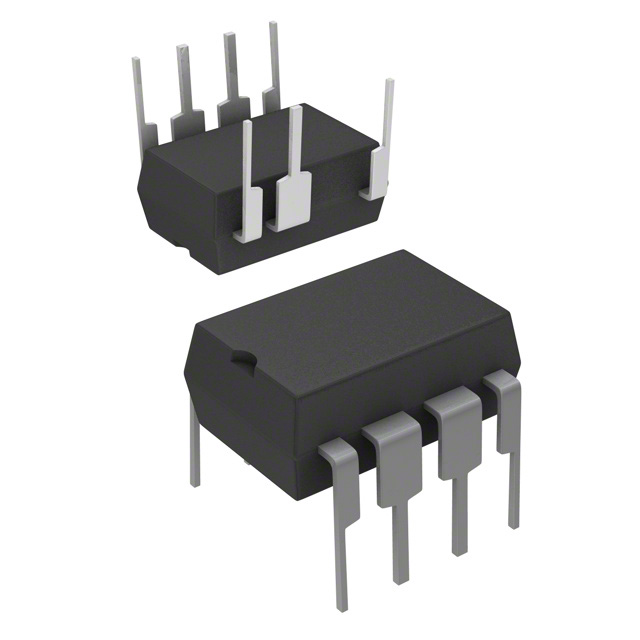

AP3971P7-G1 Diodes Incorporated
Favorite
Compare
Manufacturer:
Diodes Incorporated
MFR Product Number:
AP3971P7-G1
Product Number:
AP3971P7-G1
MFR Standard Lead Time:
Package/Case:
8-DIP (0.300\, 7.62mm), 7 Leads
Detailed Description:
IC OFFLINE SWITCH MULT TOP 7DIP
Datasheet:
Descnt:
Converter Offline Buck, Flyback Topology 60kHz 7-PDIP
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Diodes Incorporated
Series
-
Packaging
Tube
Part Status
Obsolete
Output Isolation
Either
Internal Switch(s)
Yes
Voltage - Breakdown
-
Topology
Buck, Flyback
Voltage - Start Up
15 V
Voltage - Supply (Vcc/Vdd)
5.3V ~ 22V
Duty Cycle
-
Frequency - Switching
60kHz
Power (Watts)
12 W
Fault Protection
Over Temperature, Short Circuit
Control Features
-
Operating Temperature
-40°C ~ 85°C (TA)
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
7-PDIP
Mounting Type
Through Hole
Base Product Number
AP3971
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
2,000
