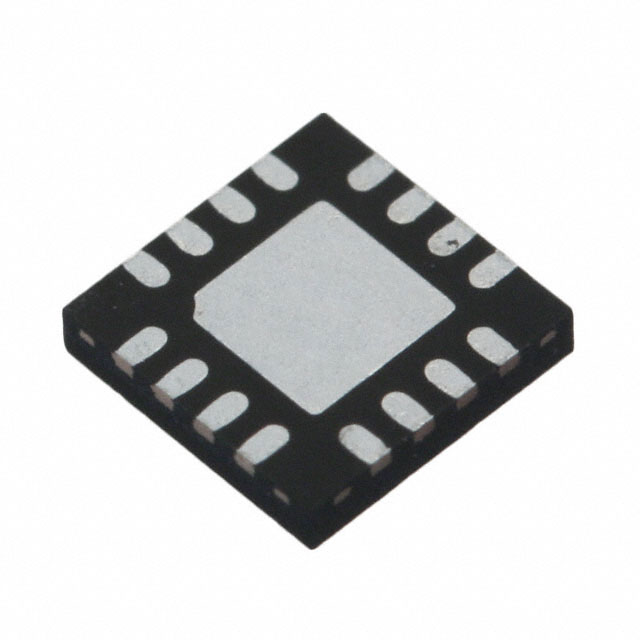

AS1109-BQFR ams-OSRAM USA INC.
Favorite
Compare
Manufacturer:
ams-OSRAM USA INC.
MFR Product Number:
AS1109-BQFR
Product Number:
AS1109-BQFR
MFR Standard Lead Time:
Package/Case:
16-WQFN Exposed Pad
Detailed Description:
IC LED DRIVER LINEAR 100MA 16QFN
Datasheet:
Descnt:
LED Driver IC 8 Output Linear Shift Register Dimming 100mA 16-QFN (4x4)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
ams-OSRAM USA INC.
Series
-
Packaging
Tray
Part Status
Obsolete
Type
Linear
Topology
Shift Register
Internal Switch(s)
Yes
Number of Outputs
8
Voltage - Supply (Min)
3.15V
Voltage - Supply (Max)
5.5V
Voltage - Output
15V
Current - Output / Channel
100mA
Frequency
50MHz
Dimming
-
Applications
Signage
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
16-WQFN Exposed Pad
Supplier Device Package
16-QFN (4x4)
Base Product Number
AS1109
Documents & Media
Environmental & Export Classifications
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
490
