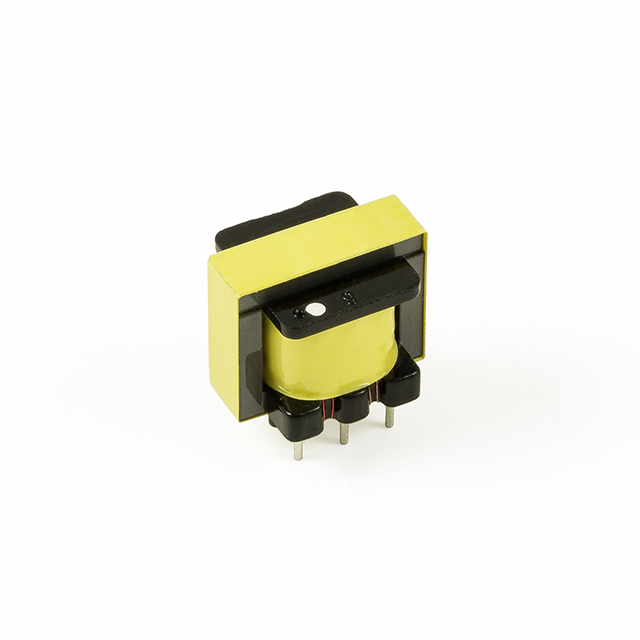

AT4412 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AT4412
Product Number:
AT4412
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR TH
Datasheet:
Descnt:
Impedance Primary Ohms Impedance Secondary Ohms 1:1 Audio Transformer Through Hole
In Stock
94
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Turns Ratio - Primary:Secondary
1:1
Impedance - Primary (Ohms)
-
Impedance - Secondary (Ohms)
-
DC Resistance (DCR) - Primary
44Ohm
DC Resistance (DCR) - Secondary
56Ohm
Transformer Type
Data/Voice Coupling
Frequency Range
-
Frequency Response
±0.5dB
Voltage - Isolation
1500V
Insertion Loss
1.4dB
Return Loss
-
Power Level
-
Operating Temperature
-40°C ~ 85°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.815" L x 0.650" W (20.70mm x 16.50mm)
Height - Seated (Max)
0.736" (18.70mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Vendor Undefined
REACH Status
REACH info available upon request
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
3475-AT4412
Standard Package
1
