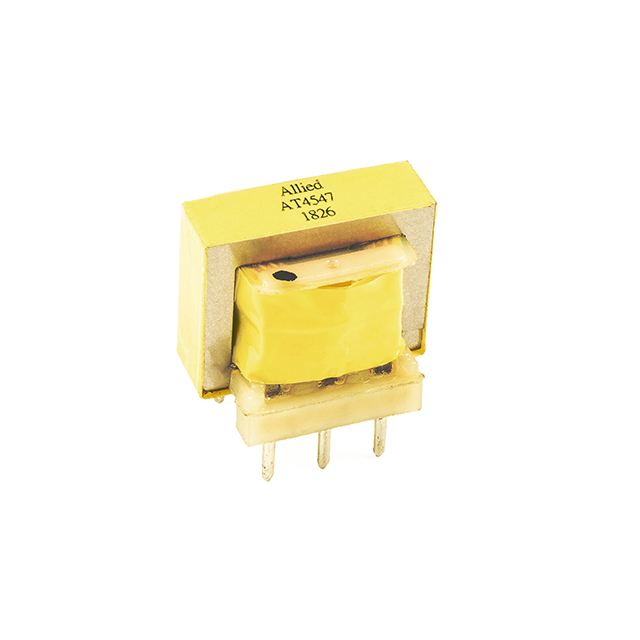

AT4547 Allied Components International
Favorite
Compare
Manufacturer:
Allied Components International
MFR Product Number:
AT4547
Product Number:
AT4547
MFR Standard Lead Time:
Package/Case:
Detailed Description:
AUDIO XFMR 600 TH
Datasheet:
Descnt:
600 Impedance Primary Ohms Impedance Secondary Ohms 1.35:1:1 Audio Transformer Through Hole
In Stock
780
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Allied Components International
Series
-
Packaging
Tray
Part Status
Active
Turns Ratio - Primary:Secondary
1.35:1:1
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
-
DC Resistance (DCR) - Primary
56.5Ohm
DC Resistance (DCR) - Secondary
40.7Ohm, 40.7Ohm
Transformer Type
Data/Voice
Frequency Range
-
Frequency Response
±1dB
Voltage - Isolation
1500VAC
Insertion Loss
0.8dB Typ
Return Loss
30dB Typ
Power Level
-
Operating Temperature
0°C ~ 105°C
Approval Agency
-
Mounting Type
Through Hole
Size / Dimension
0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max)
0.740" (18.80mm)
Termination Style
PC Pin
Weight
-
-
Documents & Media
Environmental & Export Classifications
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
Additional Resources
Other Names
3475-AT4547
Standard Package
1
