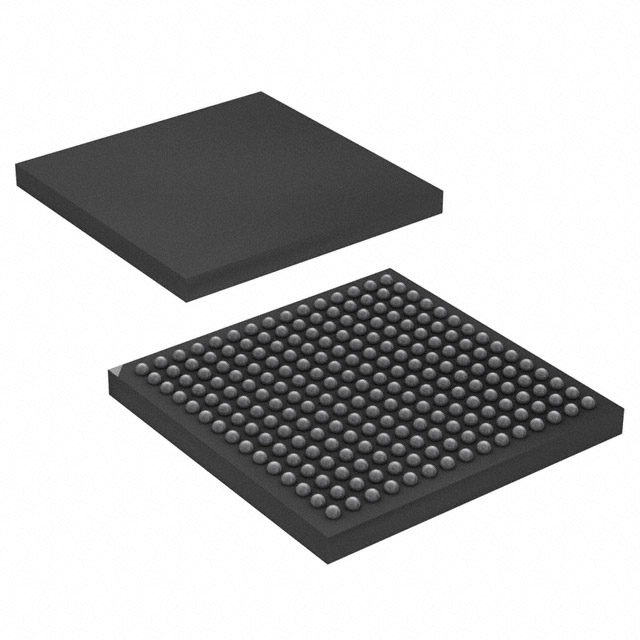

AT91CAP7E-NA-ZJ Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
AT91CAP7E-NA-ZJ
Product Number:
AT91CAP7E-NA-ZJ
MFR Standard Lead Time:
Package/Case:
225-LFBGA
Detailed Description:
IC MCU 16/32B 256KB ROM 225LFBGA
Datasheet:
Descnt:
ARM7® CAP™ Microcontroller IC 16/32-Bit 80MHz 256KB (256K x 8) ROM 225-LFBGA (13x13)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
CAP™
Packaging
Tray
Part Status
Obsolete
DigiKey Programmable
Not Verified
Core Processor
ARM7®
Core Size
16/32-Bit
Speed
80MHz
Connectivity
EBI/EMI, FPGA, IrDA, SPI, UART/USART, USB
Peripherals
DMA, POR, PWM, WDT
Number of I/O
32
Program Memory Size
256KB (256K x 8)
Program Memory Type
ROM
EEPROM Size
-
RAM Size
160K x 8
Voltage - Supply (Vcc/Vdd)
1.08V ~ 3.6V
Data Converters
A/D 8x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
225-LFBGA (13x13)
Package / Case
225-LFBGA
Base Product Number
AT91CAP7
-
Documents & Media
Datasheets
AT91CAP7E
AT91CAP7E Overview
Video File
Introducing Atmel Studio 7
Atmel START Overview
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Packaging
Transfer to Microchip/Label/Pkg 5/Sep/2016
MBB/Label Chgs 16/Nov/2018
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
3A001A3
HTSUS
8542.31.0001
-
Additional Resources
Standard Package
160
-
