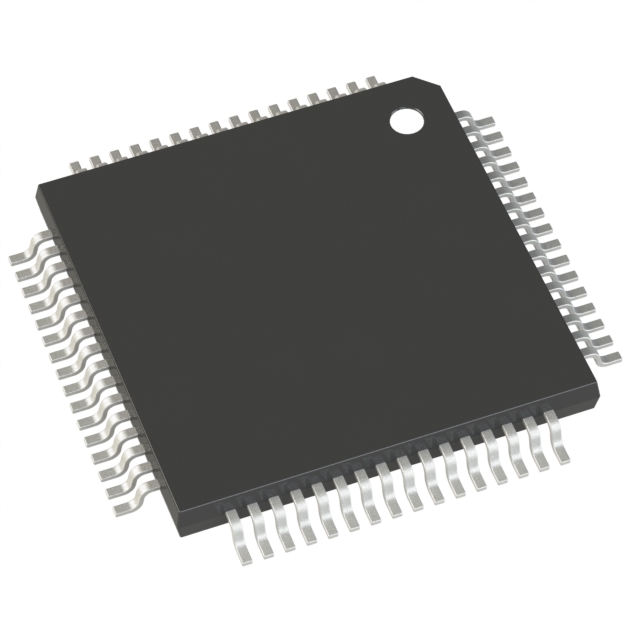

AT91SAM7S512B-AU Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
AT91SAM7S512B-AU
Product Number:
AT91SAM7S512B-AU
MFR Standard Lead Time:
4 Weeks
Package/Case:
64-LQFP
Detailed Description:
IC MCU 16/32B 512KB FLASH 64LQFP
Datasheet:
Descnt:
ARM7® SAM7S Microcontroller IC 16/32-Bit 55MHz 512KB (512K x 8) FLASH 64-LQFP (10x10)
In Stock
1761
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
SAM7S
Packaging
Tray
Part Status
Active
DigiKey Programmable
Not Verified
Core Processor
ARM7®
Core Size
16/32-Bit
Speed
55MHz
Connectivity
I2C, SPI, SSC, UART/USART, USB
Peripherals
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O
32
Program Memory Size
512KB (512K x 8)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
64K x 8
Voltage - Supply (Vcc/Vdd)
1.65V ~ 1.95V
Data Converters
A/D 8x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
64-LQFP (10x10)
Package / Case
64-LQFP
Base Product Number
AT91SAM7S512
-
Documents & Media
Datasheets
AT91SAM Summary
AT91SAM Datasheet
Product Training Modules
Studio Introduction to Software Framework (ASF)
Advanced Software Framework (ASF) Example of Use
MCU Product Line Introduction
Video File
Atmel: picoPower Labs - The Parrot
Atmel START Overview
Introducing Atmel Studio 7
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Packaging
Boxes 07/Dec/2016
Transfer to Microchip/Label/Pkg 5/Sep/2016
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
3A991A2
HTSUS
8542.31.0001
-
Additional Resources
Other Names
AT91SAM7S512BAU
Standard Package
160
