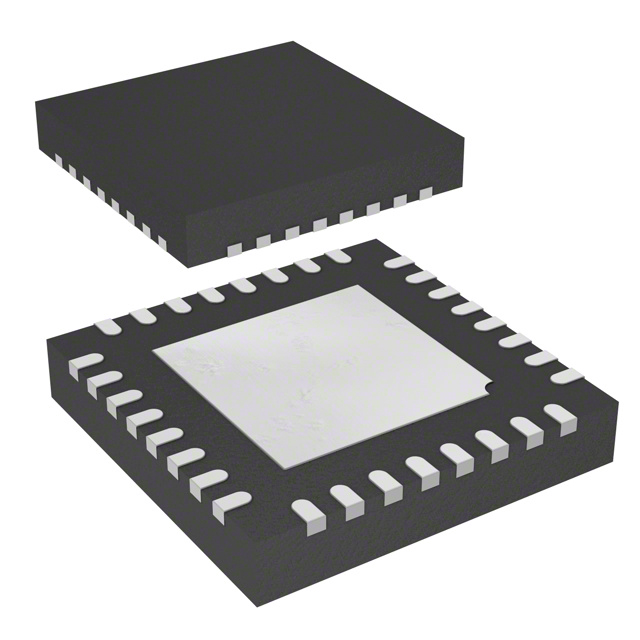

ATA6823C-PHQW Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
ATA6823C-PHQW
Product Number:
ATA6823C-PHQW
MFR Standard Lead Time:
Package/Case:
32-VQFN Exposed Pad
Detailed Description:
IC MOTOR DRIVER 6.5V-22.7V 32QFN
Datasheet:
Descnt:
Motor Driver Power MOSFET LIN, PWM 32-QFN (7x7)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Obsolete
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Controller - Commutation, Direction Management
Output Configuration
Pre-Driver - Half Bridge (2)
Interface
LIN, PWM
Technology
Power MOSFET
Step Resolution
-
Applications
General Purpose
Current - Output
-
Voltage - Supply
6.5V ~ 22.7V
Voltage - Load
-
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
32-VQFN Exposed Pad
Supplier Device Package
32-QFN (7x7)
Base Product Number
ATA6823
Documents & Media
PCN Packaging
Transfer to Microchip/Label/Pkg 5/Sep/2016
Tape and Reel Label Update 10/Feb/2015
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
