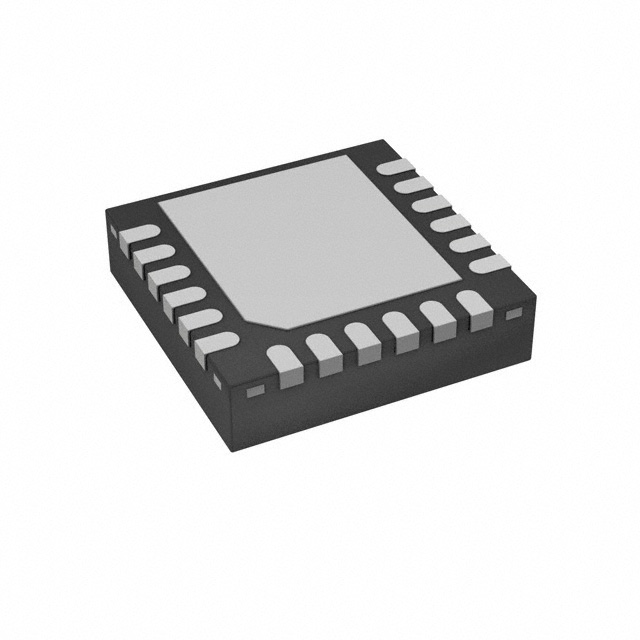

ATA6831-PISW Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
ATA6831-PISW
Product Number:
ATA6831-PISW
MFR Standard Lead Time:
Package/Case:
18-VFQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRIVER 1A 18VQFN
Datasheet:
Descnt:
Half Bridge (3) Driver Bulbs, DC Motors, Resistors 18-VQFN (4x4)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tube
Part Status
Obsolete
Output Configuration
Half Bridge (3)
Applications
Bulbs, DC Motors, Resistors
Interface
PWM, SPI
Load Type
Inductive, Capacitive, Resistive
Technology
-
Rds On (Typ)
1.5Ohm
Current - Output / Channel
1A
Current - Peak Output
1.3A
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
7V ~ 40V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
-
Fault Protection
-
Mounting Type
Surface Mount
Package / Case
18-VFQFN Exposed Pad
Supplier Device Package
18-VQFN (4x4)
Base Product Number
ATA6831
-
Documents & Media
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Packaging
MBB/Label Chgs 16/Nov/2018
Transfer to Microchip/Label/Pkg 5/Sep/2016
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Standard Package
75
-
