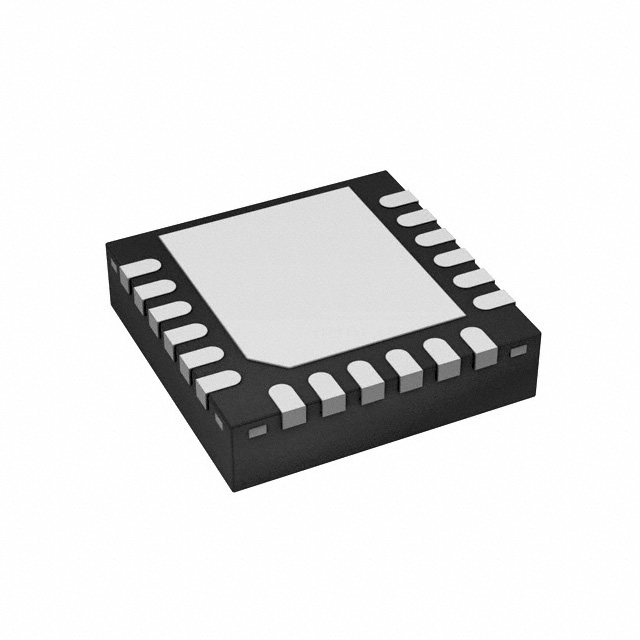

ATA6832C-PIQW-1 Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
ATA6832C-PIQW-1
Product Number:
ATA6832C-PIQW-1
MFR Standard Lead Time:
Package/Case:
18-VFQFN Exposed Pad
Detailed Description:
IC HALF BRIDGE DRIVER 1A 18QFN
Datasheet:
Descnt:
Half Bridge (3) Driver Bulbs, DC Motors, Resistors Power MOSFET 18-QFN (4x4)
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
Microchip Technology
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Output Configuration
Half Bridge (3)
Applications
Bulbs, DC Motors, Resistors
Interface
PWM, SPI
Load Type
Inductive, Capacitive, Resistive
Technology
Power MOSFET
Rds On (Typ)
800mOhm LS, 800mOhm HS
Current - Output / Channel
1A
Current - Peak Output
-
Voltage - Supply
4.75V ~ 5.25V
Voltage - Load
5.5V ~ 40V
Operating Temperature
-40°C ~ 150°C (TJ)
Features
-
Fault Protection
Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type
Surface Mount
Package / Case
18-VFQFN Exposed Pad
Supplier Device Package
18-QFN (4x4)
Base Product Number
ATA6832
-
Documents & Media
PCN Packaging
Mult Dev Packaging 08/May/2024
MBB/Label Chgs 16/Nov/2018
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
6,000
