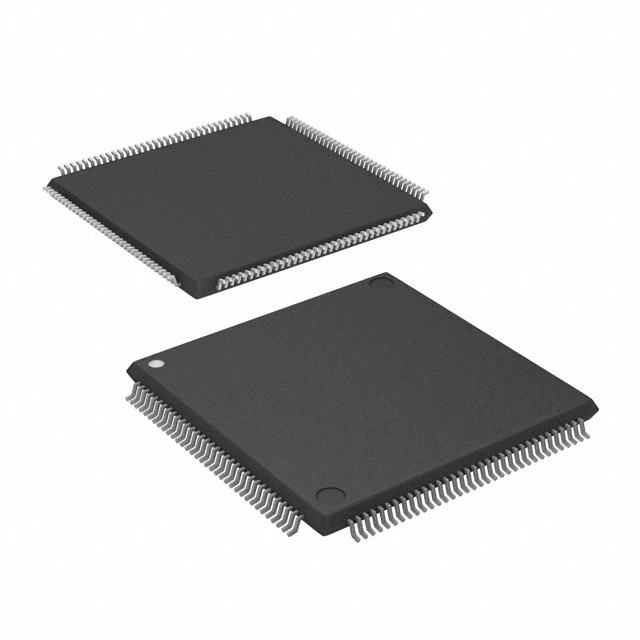

ATSAM4E16EA-AUR Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
ATSAM4E16EA-AUR
MFR Standard Lead Time:
8 Weeks
Package/Case:
144-LQFP
Detailed Description:
IC MCU 32BIT 1MB FLASH 144LQFP
Datasheet:
Descnt:
ARM® Cortex®-M4 SAM4E Microcontroller IC 32-Bit Single-Core 120MHz 1MB (1M x 8) FLASH 144-LQFP (20x20)
In Stock
23106
Contact Name
Business Email
Company Name
Country
Select
Quantity
Quick RFQ
Product Attributes
Mfr
Microchip Technology
Series
SAM4E
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Core Processor
ARM® Cortex®-M4
Core Size
32-Bit Single-Core
Speed
120MHz
Connectivity
CANbus, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB
Peripherals
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O
117
Program Memory Size
1MB (1M x 8)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
128K x 8
Voltage - Supply (Vcc/Vdd)
1.62V ~ 3.6V
Data Converters
A/D 16x12b; D/A 2x12b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
144-LQFP (20x20)
Package / Case
144-LQFP
Base Product Number
ATSAM4E
-
Documents & Media
Datasheets
SAM4E Series Datasheet
SAM4E Series Flyer
Product Training Modules
Advanced Software Framework (ASF) Example of Use
MCU Product Line Introduction
Studio Development Environment Overview Part 1
Video File
Introducing Atmel Studio 7
Atmel START Overview
Atmel: picoPower Labs - The Parrot
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Design/Specification
Marking Chgs 11/Jul/2017
Errata 06/Jun/2016
PCN Packaging
MBB/Label Chgs 16/Nov/2018
Tape and Reel Label Update 10/Feb/2015
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
5A992C
HTSUS
8542.31.0001
-
Additional Resources
Other Names
Standard Package
800
