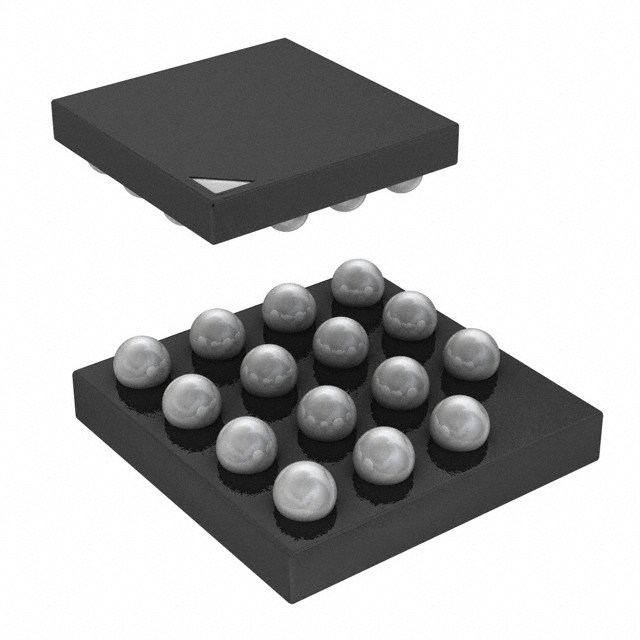

ATTINY20-CCUR Microchip Technology
Favorite
Compare
Manufacturer:
Microchip Technology
MFR Product Number:
ATTINY20-CCUR
Product Number:
ATTINY20-CCUR
MFR Standard Lead Time:
8 Weeks
Package/Case:
15-UFBGA
Detailed Description:
IC MCU 8BIT 2KB FLASH 15UFBGA
Datasheet:
Descnt:
AVR AVR® ATtiny Microcontroller IC 8-Bit 12MHz 2KB (1K x 16) FLASH 15-UFBGA (3x3)
In Stock
5363
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Microchip Technology
Series
AVR® ATtiny
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
DigiKey Programmable
Not Verified
Core Processor
AVR
Core Size
8-Bit
Speed
12MHz
Connectivity
I2C, SPI
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O
12
Program Memory Size
2KB (1K x 16)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
1.8V ~ 5.5V
Data Converters
A/D 8x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
15-UFBGA (3x3)
Package / Case
15-UFBGA
Base Product Number
ATTINY20
-
Documents & Media
Datasheets
ATTINY20 Summary
ATTINY20 Datasheet
Product Training Modules
tinyAVR Introduction
Advanced Software Framework (ASF) Example of Use
Studio Introduction to Software Framework (ASF)
Video File
Atmel: picoPower Labs - The Parrot
Microchip Ethernet of Everything | Digi-Key Daily
Introducing Atmel Studio 7
Environmental Information
Microchip RoHS
Microchip REACH
Microchip CA Prop65
PCN Design/Specification
Added Copper Bonding Wire 11/Sep/2014
Marking Chgs 11/Jul/2017
PCN Packaging
Boxes 07/Dec/2016
Transfer to Microchip/Label/Pkg 5/Sep/2016
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
3 (168 Hours)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.31.0001
-
Additional Resources
Other Names
Standard Package
6,000
