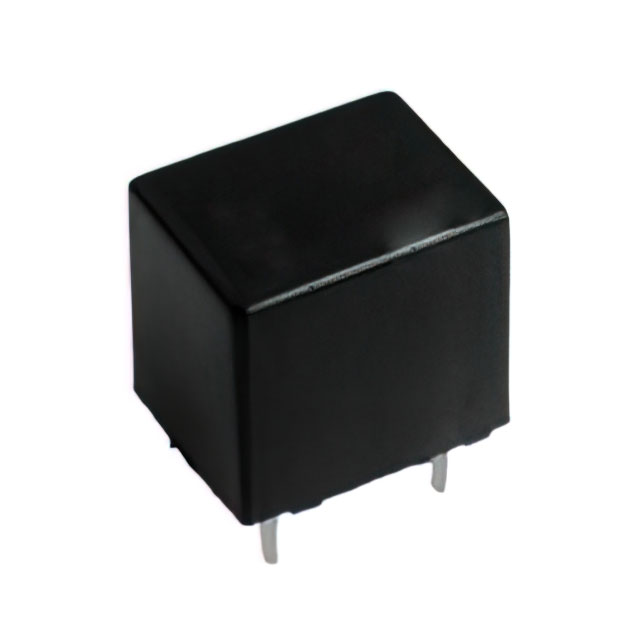

AZ947-1C-24DE American Zettler
Favorite
Compare
Manufacturer:
American Zettler
MFR Product Number:
AZ947-1C-24DE
Product Number:
AZ947-1C-24DE
MFR Standard Lead Time:
9 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 20A 24V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
American Zettler
Series
AZ947
Packaging
Box
Part Status
Active
Coil Type
Non Latching
Coil Current
25 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
20 A
Switching Voltage
250VAC, 50VDC - Max
Must Operate Voltage
14.4 VDC
Must Release Voltage
1.2 VDC
Operate Time
10 ms
Release Time
5 ms
Features
Sealed - Epoxy
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 85°C
Contact Material
Silver Tin Oxide (AgSnO)
Coil Power
600mW
Coil Resistance
960 Ohms
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
-
Additional Resources
Other Names
3385-AZ947-1C-24DE
Standard Package
100
