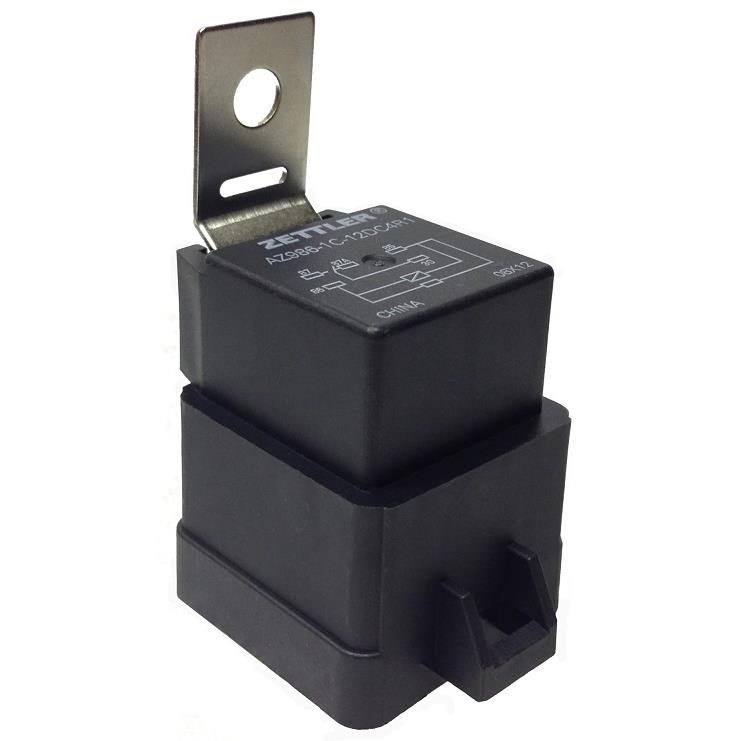

AZ9861-1C-12DC3R1 American Zettler
Favorite
Compare
Manufacturer:
American Zettler
MFR Product Number:
AZ9861-1C-12DC3R1
Product Number:
AZ9861-1C-12DC3R1
MFR Standard Lead Time:
11 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE SPDT 40A 12V
Datasheet:
Descnt:
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
American Zettler
Series
AZ9861
Packaging
Box
Part Status
Active
Coil Type
Non Latching
Coil Current
96.8 mA
Coil Voltage
12VDC
Contact Form
SPDT (1 Form C)
Contact Rating (Current)
40 A
Switching Voltage
40VDC - Max
Must Operate Voltage
7.2 VDC
Must Release Voltage
1.2 VDC
Operate Time
6 ms
Release Time
3 ms
Features
280-ISO, Resistor, Shrouded w/ Steel Bracket
Mounting Type
Chassis Mount
Termination Style
Plug In, Quick Connect - 0.110" (2.8mm)
Operating Temperature
-55°C ~ 125°C
Contact Material
Silver Tin Oxide (AgSnO)
Coil Power
1.2W
Coil Resistance
124 Ohms
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
-
Additional Resources
Other Names
3385-AZ9861-1C-12DC3R1
Standard Package
100
