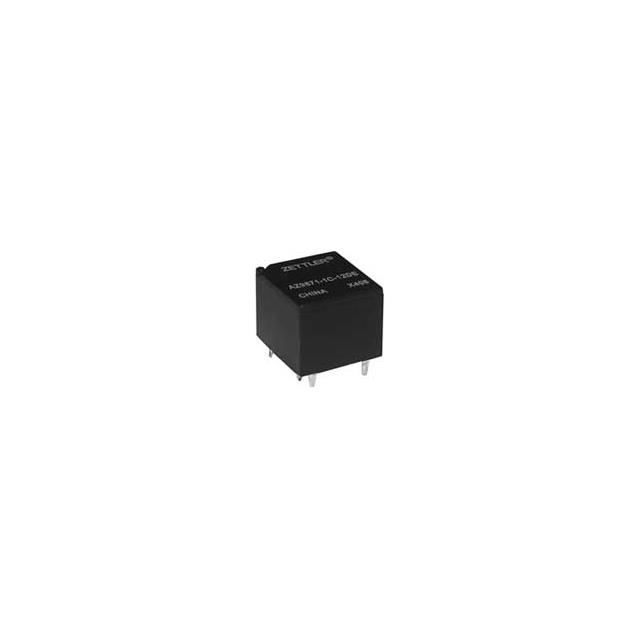

AZ9871-2C-12DET American Zettler
Favorite
Compare
Manufacturer:
American Zettler
MFR Product Number:
AZ9871-2C-12DET
Product Number:
AZ9871-2C-12DET
MFR Standard Lead Time:
8 Weeks
Package/Case:
Detailed Description:
RELAY AUTOMOTIVE DPDT 30A 12V
Datasheet:
Descnt:
In Stock
973
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
American Zettler
Series
AZ9871
Packaging
Tray
Part Status
Active
Coil Type
Non Latching
Coil Current
47.2 mA
Coil Voltage
12VDC
Contact Form
DPDT (2 Form C)
Contact Rating (Current)
30 A
Switching Voltage
24VDC - Max
Must Operate Voltage
6.9 VDC
Must Release Voltage
1.5 VDC
Operate Time
3 ms
Release Time
1.5 ms
Features
Sealed - Epoxy
Mounting Type
Through Hole
Termination Style
PC Pin
Operating Temperature
-40°C ~ 105°C
Contact Material
Silver Tin Oxide (AgSnO)
Coil Power
567mW
Coil Resistance
254 Ohms
-
Documents & Media
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.41.0020
-
Additional Resources
Other Names
3385-AZ9871-2C-12DET
Standard Package
100
