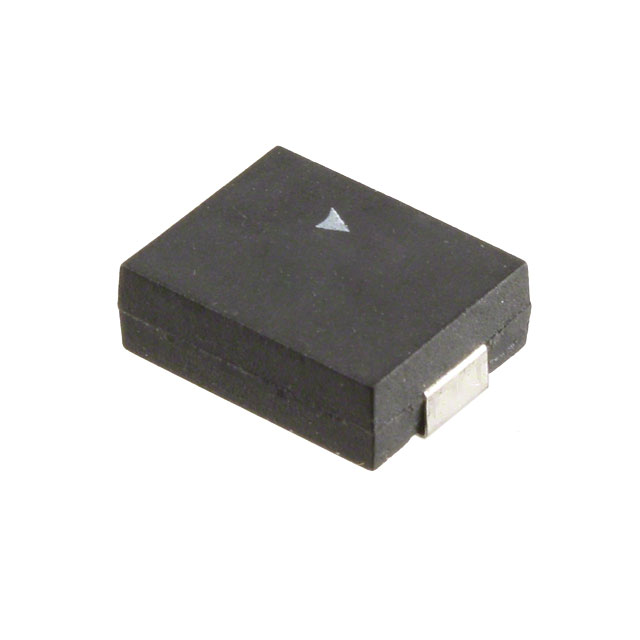

B59315P1120A062 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B59315P1120A062
Product Number:
B59315P1120A062
MFR Standard Lead Time:
19 Weeks
Package/Case:
4032 (1080 Metric)
Detailed Description:
PTC RESET FUSE 80V 150MA 4032
Datasheet:
Descnt:
Ceramic PTC Resettable Fuse 80V 150 mA Ih Surface Mount 4032 (1080 Metric)
In Stock
10217
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B59315
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
Ceramic
Voltage - Max
80V
Current - Hold (Ih) (Max)
150 mA
Current - Trip (It)
310 mA
Current - Max
1.6 A
Resistance - 25°C (Typ)
16 Ohms
Operating Temperature
-40°C ~ 60°C
Grade
Automotive
Qualification
AEC-Q200
Ratings
-
Mounting Type
Surface Mount
Package / Case
4032 (1080 Metric)
Size / Dimension
0.394" L x 0.315" W (10.00mm x 8.00mm)
Height - Seated (Max)
-
Thickness (Max)
0.150" (3.80mm)
Lead Spacing
-
Approval Agency
-
-
Documents & Media
Datasheets
B59115,215,315 Series Datasheet
PTC Taping and Packing Numbering
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
HTML Datasheet
PTC Taping and Packing Numbering
B59115,215,315 Series Datasheet
Product Drawings
B59315P1120A062 Side 1
B59315P1120A062 Side 2
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
1,000
