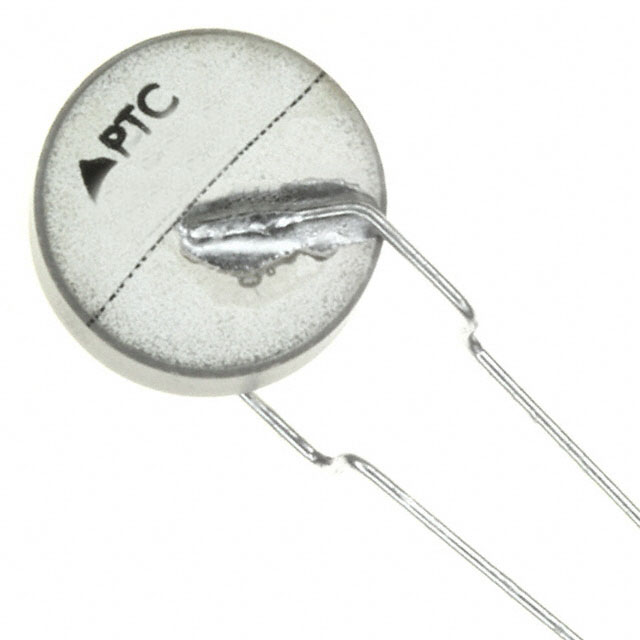

B59770B0120A070 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B59770B0120A070
Product Number:
B59770B0120A070
MFR Standard Lead Time:
19 Weeks
Package/Case:
Radial, Disc
Detailed Description:
PTC RESET FUSE 420V RADIAL DISC
Datasheet:
Descnt:
Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
In Stock
1000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B59770
Packaging
Bulk
Part Status
Active
Type
Ceramic
Voltage - Max
420V
Current - Trip (It)
127 mA
Current - Max
1.4 A
Time to Trip
4 s
Resistance - 25°C (Typ)
70 Ohms
Operating Temperature
0°C ~ 60°C
Ratings
-
Mounting Type
Through Hole
Package / Case
Radial, Disc
Size / Dimension
0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max)
0.197" (5.00mm)
Thickness (Max)
-
Lead Spacing
0.197" (5.00mm)
Approval Agency
UL
-
Documents & Media
Datasheets
B594xxC1130B070, B5975xC01xxA070
PTC Taping and Packing Numbering
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
HTML Datasheet
B594xxC1130B070, B5975xC01xxA070
PTC Taping and Packing Numbering
Product Drawings
B5977 Series Side
B5977 Series Front
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8533.40.8070
-
Additional Resources
Other Names
Standard Package
1,000
