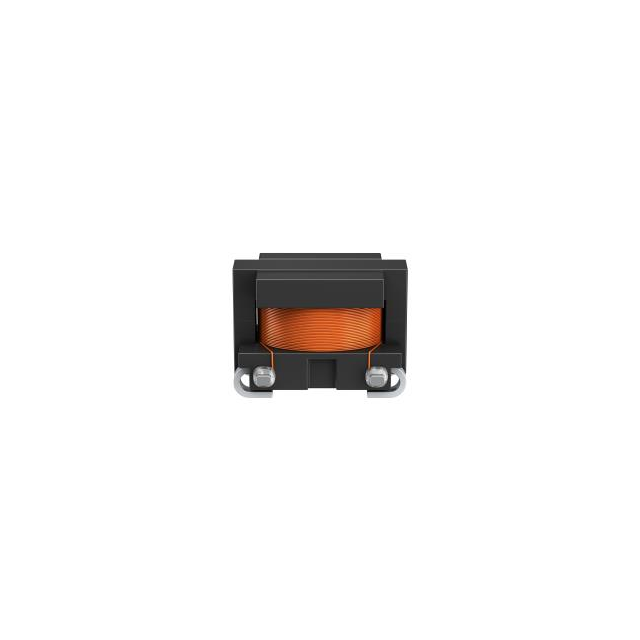

B82801A0185A150 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82801A0185A150
Product Number:
B82801A0185A150
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:150 7A SMD
Datasheet:
Descnt:
7 A 1:150 Current Sense Transformer 50kHz ~ 1MHz 2.5mOhm Primary, 21Ohm Secondary 1.84 mH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B82801A
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
7 A
Inductance
1.84 mH
ET (Volt-Time)
43.2VµS
Turns Ratio - Primary:Secondary
1:150
Current Ratio
-
DC Resistance (DCR)
2.5mOhm Primary, 21Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.185" L x 0.138" W (4.70mm x 3.50mm)
Height - Seated (Max)
0.138" (3.50mm)
Termination Style
J Lead
-
Documents & Media
Datasheets
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.8000
-
Additional Resources
Other Names
Standard Package
600
