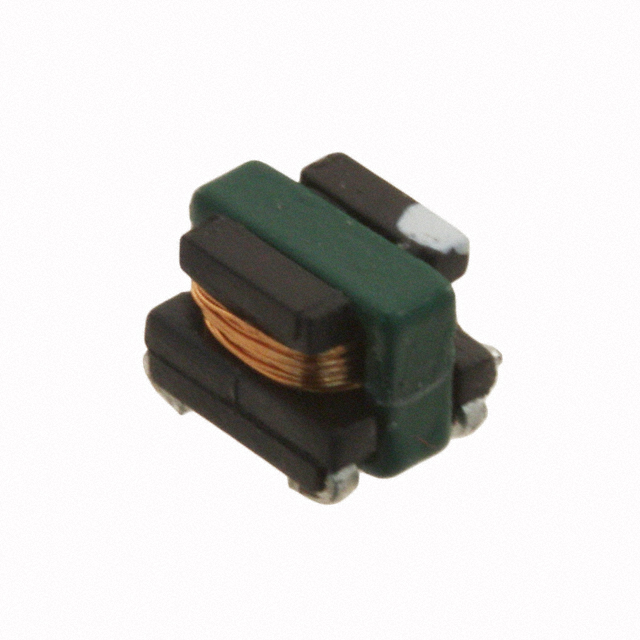

B82801A0214A050 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82801A0214A050
Product Number:
B82801A0214A050
MFR Standard Lead Time:
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:50 SMD
Datasheet:
Descnt:
1:50 Current Sense Transformer 50kHz ~ 1MHz 2.5mOhm Primary, 2.2Ohm Secondary 205 µH Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B82801A
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Inductance
205 µH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:50
Current Ratio
-
DC Resistance (DCR)
2.5mOhm Primary, 2.2Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.138" L x 0.185" W (3.50mm x 4.70mm)
Height - Seated (Max)
0.138" (3.50mm)
Termination Style
J Lead
Weight
0.006 oz (0.17 g)
-
Documents & Media
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Featured Product
SMT Current Sense Transformers
B82801A1 Series Current Sense Transformers
Product Drawings
B82801A Series Side 1
B82801A Series Side 3
B82801A Series Side 2
-
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
600
