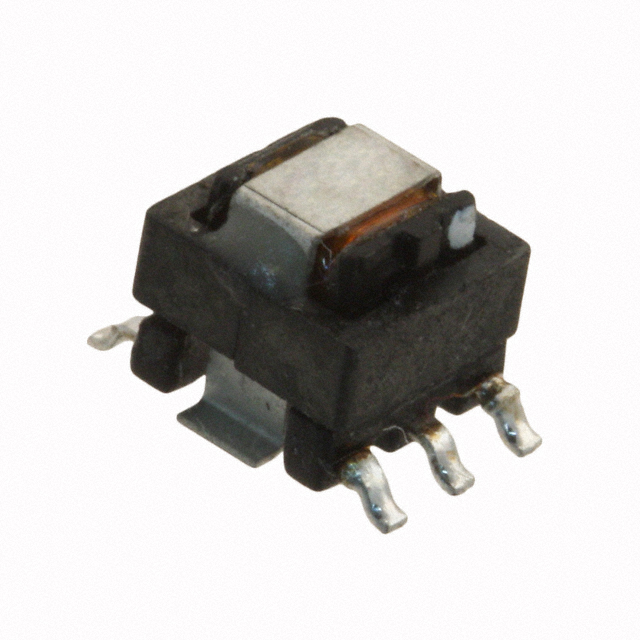

B82801B0925A200 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82801B0925A200
Product Number:
B82801B0925A200
MFR Standard Lead Time:
17 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:200 20A SMD
Datasheet:
Descnt:
20 A 1:200 Current Sense Transformer 50kHz ~ 1MHz 0.6mOhm Primary, 33.24Ohm Secondary 8 mH Surface Mount
In Stock
85
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B82801B
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
50kHz ~ 1MHz
Type
Invasive
Current Rating (Amps)
20 A
Inductance
8 mH
ET (Volt-Time)
100VµS
Turns Ratio - Primary:Secondary
1:200
Current Ratio
-
DC Resistance (DCR)
0.6mOhm Primary, 33.24Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.280" L x 0.320" W (7.11mm x 8.13mm)
Height - Seated (Max)
0.200" (5.08mm)
Termination Style
Gull Wing
-
Documents & Media
Datasheets
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.50.8000
-
