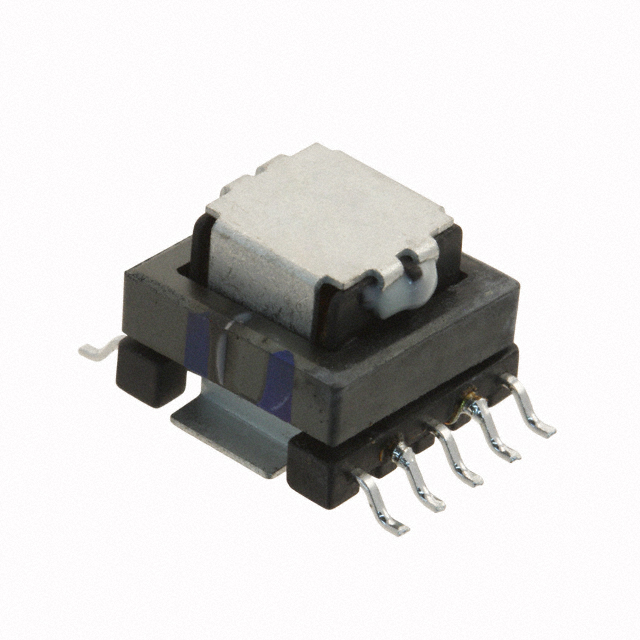

B82801C1265A150 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82801C1265A150
Product Number:
B82801C1265A150
MFR Standard Lead Time:
25 Weeks
Package/Case:
Detailed Description:
CURR SENSE XFMR 1:150 SMD
Datasheet:
Descnt:
1:150 Current Sense Transformer 50kHz ~ 500kHz 0.28mOhm Primary, 2.2Ohm Secondary 12.6 mH Surface Mount
In Stock
521
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B82801C
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Frequency Range
50kHz ~ 500kHz
Type
Invasive
Inductance
12.6 mH
ET (Volt-Time)
-
Turns Ratio - Primary:Secondary
1:150
Current Ratio
-
DC Resistance (DCR)
0.28mOhm Primary, 2.2Ohm Secondary
Ratings
-
Mounting Type
Surface Mount
Size / Dimension
0.560" L x 0.530" W (14.22mm x 13.46mm)
Height - Seated (Max)
0.394" (10.00mm)
Termination Style
Gull Wing
Weight
0.011 lb (4.99 g)
-
Documents & Media
Datasheets
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
200
