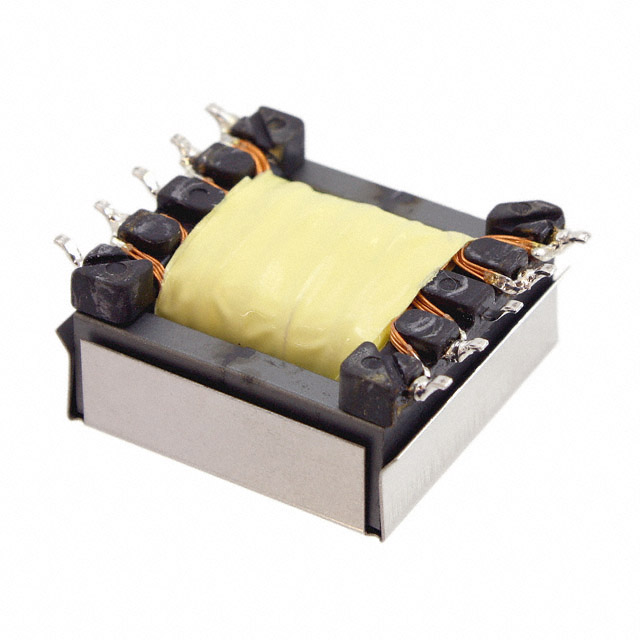

B82802A0055A225 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82802A0055A225
Product Number:
B82802A0055A225
MFR Standard Lead Time:
25 Weeks
Package/Case:
Detailed Description:
XFMR FLYBACK DC/DC CONV 22UH SMD
Datasheet:
Descnt:
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 100kHz Surface Mount
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
B82802A
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Type
For DC/DC Converters
Applications
Flyback Converters
Intended Chipset
-
Chipset Manufacturer
-
Voltage - Primary
36 ~ 60V
Voltage - Auxiliary
-
Voltage - Isolation
1500Vrms
Inductance Frequency
22µH 100kHz
Frequency
100kHz
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Size / Dimension
-
Height - Seated (Max)
0.583" (14.80mm)
Footprint
1.063" L x 1.283" W (27.00mm x 32.60mm)
Documents & Media
Datasheets
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
320
