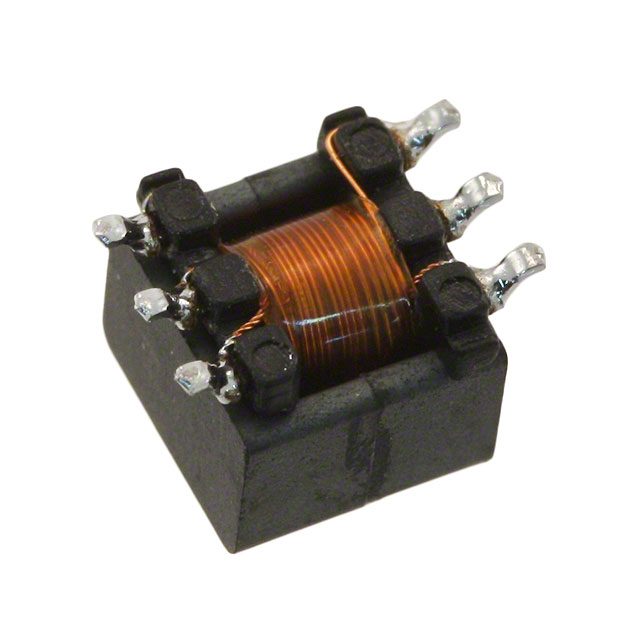

B82804A0264A210 EPCOS - TDK Electronics
Favorite
Compare
Manufacturer:
EPCOS - TDK Electronics
MFR Product Number:
B82804A0264A210
Product Number:
B82804A0264A210
MFR Standard Lead Time:
23 Weeks
Package/Case:
Detailed Description:
PULSE XFMR 1:1:1 264UH
Datasheet:
Descnt:
264µH Gate Drive Pulse Transformer 1:1:1 Surface Mount
In Stock
5690
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Manufacturer
EPCOS - TDK Electronics
Series
EP5
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Customized-Package
Part Status
Active
Transformer Type
Gate Drive
Inductance
264µH
ET (Volt-Time)
22.4VµS
Turns Ratio - Primary:Secondary
1:1:1
Mounting Type
Surface Mount
Size / Dimension
0.264" L x 0.240" W (6.70mm x 6.10mm)
Height - Seated (Max)
0.213" (5.40mm)
Operating Temperature
-40°C ~ 125°C
Weight
-
-
Documents & Media
Datasheets
Environmental Information
TDK Electronics RoHS & REACH
TDK Electronics Inc REACH
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8504.31.2000
-
Additional Resources
Other Names
Standard Package
850
