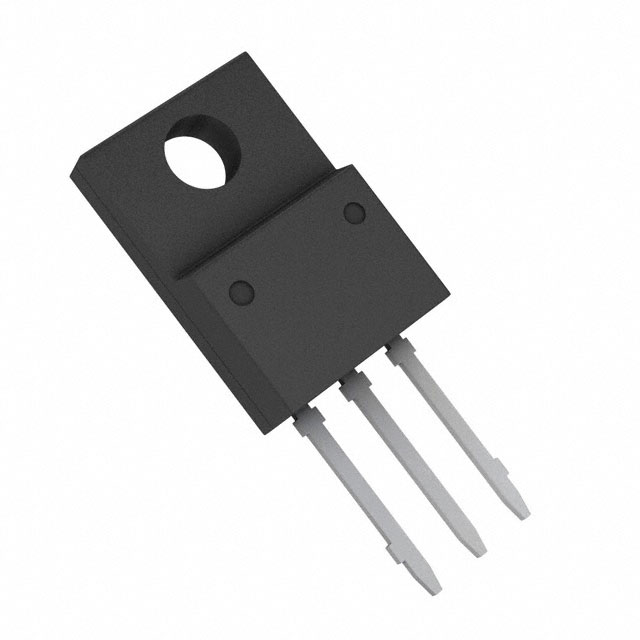

BA178M05CP-E2 Rohm Semiconductor
Favorite
Compare
Manufacturer:
Rohm Semiconductor
MFR Product Number:
BA178M05CP-E2
Product Number:
BA178M05CP-E2
MFR Standard Lead Time:
6 Weeks
Package/Case:
TO-220-3 Cropped Leads
Detailed Description:
IC REG LINEAR 5V 500MA TO220CP-3
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-220CP-3
In Stock
7000
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Rohm Semiconductor
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status
Active
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
25V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
2V 500mA (Typ)
Current - Output
500mA
Current - Quiescent (Iq)
4.5 mA
Current - Supply (Max)
6 mA
PSRR
78dB (120Hz)
Control Features
-
Protection Features
-
Operating Temperature
-40°C ~ 85°C
Mounting Type
Through Hole
Package / Case
TO-220-3 Cropped Leads
Supplier Device Package
TO-220CP-3
Base Product Number
BA178M05
Documents & Media
Datasheets
BA178M05CP-E2
BA178xx, BA178Mxx
Datasheet Available In Japanese
Other Related Documents
Product Training Modules
Standard LDO Regulator ICs
Basics of Thermal Resistance and Heat Dissipation and Calculation of Junction Temperature (Tj)
Environmental Information
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
500
