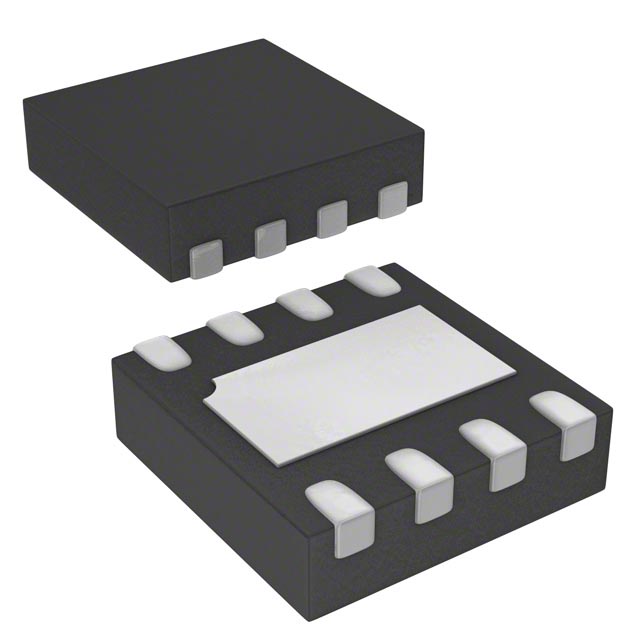

BD7003NUX-E2 Rohm Semiconductor
Favorite
Compare
Manufacturer:
Rohm Semiconductor
MFR Product Number:
BD7003NUX-E2
Product Number:
BD7003NUX-E2
MFR Standard Lead Time:
Package/Case:
8-UFDFN Exposed Pad
Detailed Description:
IC REG LIN POS ADJ VSON008X2020
Datasheet:
Descnt:
Linear Voltage Regulator IC Positive Adjustable 2 Output 300mA, 300mA VSON008X2020
In Stock
1573
Contact Name
Business Email
Company Name
Country
Select
Tatget Price
Quantity
Quick RFQ
Application Guide:
Product Highlights:
Product Attributes
Mfr
Rohm Semiconductor
Series
-
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
2
Voltage - Input (Max)
5.5V
Voltage - Output (Min/Fixed)
1.2V
Voltage - Output (Max)
3.3V
Voltage Dropout (Max)
0.36V 300mA, 0.36V 300mA
Current - Output
300mA, 300mA
Current - Quiescent (Iq)
95 µA
PSRR
66dB (100Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
8-UFDFN Exposed Pad
Supplier Device Package
VSON008X2020
Base Product Number
BD7003
-
Documents & Media
Other Related Documents
Product Training Modules
Standard LDO Regulator ICs
Basics of Thermal Resistance and Heat Dissipation and Calculation of Junction Temperature (Tj)
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8542.39.0001
-
Additional Resources
Other Names
Standard Package
4,000
